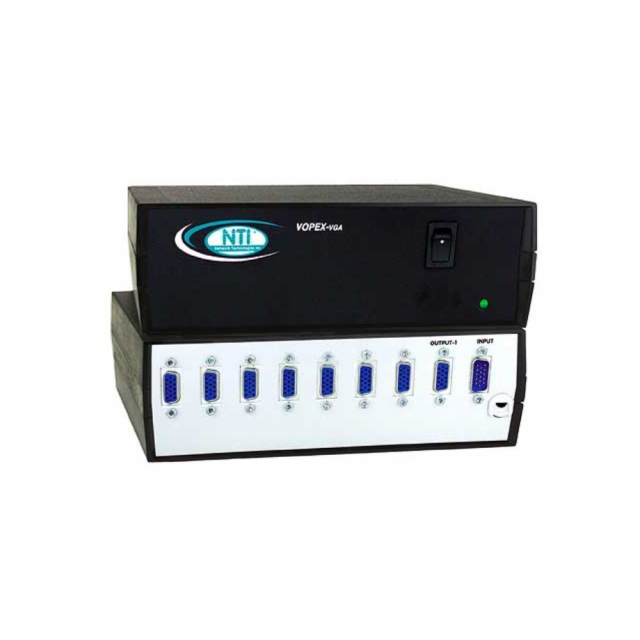

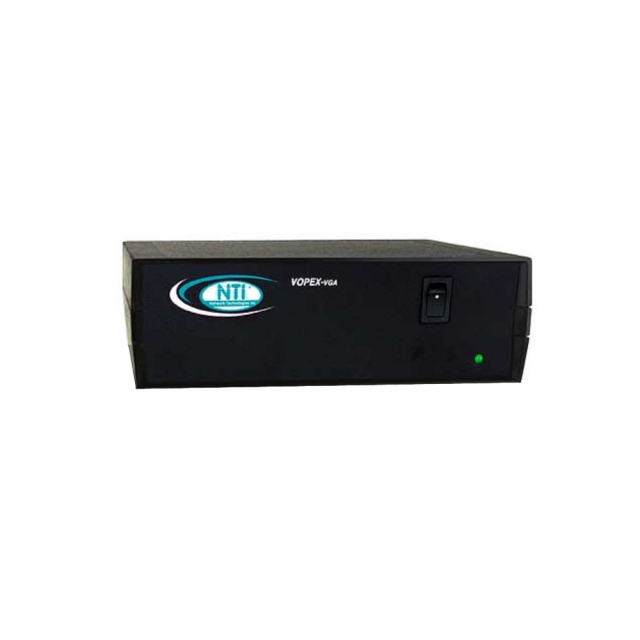

Network Technologies (NTI) vopex-4v-h 4-Port VGA Video Splitter
Brand:
Network Technologies (NTI)
Part #:
vopex-4v-h
Condition:
Brand New
Brand New $268.20 /Each
Manufacturer warranty Description
vopex-4v-h Includes Only:
- VGA Video Splitter
- 3-foot (0.91-meter) VGA cable
Features:
- Supports VGA/SVGA UXGA/WUXGA monitors, including LCD flat panel monitors.
- 1920x1200 resolution with no degradation.
- Supports the DDC2B protocol.
- Burn-in monitors after repair.
- Ideal for classrooms, tradeshows, or digital signage where high quality video on multiple monitors is needed.
The VOPEX® VGA Video Splitter enables up to eight VGA monitors to be driven by a single computer. The same image can be displayed on up to 256 monitors by cascading. The DDC2B protocol is supported from Output-1.
Technical details
Main features
- Power 100 to 240 VAC at 50 or 60 Hz.
- Number of Ports 4
- Video Input Male 15-pin HD input connector. Supports a PC, SUN or MAC with VGA video. Multiplatform support: Windows 7/8/10, Windows Server 2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 10/11. Maximum input levels for video: 1.45Vp-p. Input impedance: 75 Ohms. Supports Separate and Composite TTL level sync and Sync On Green. Sync input frequency ranges: Horizontal: 15 to 130 kHz. Vertical: 30 to 150 Hz.
- Video Output Female 15-pin HD output connectors. Crisp and clear 1920x1200 resolution. Bandwidth is 150 MHz. Maximum output levels for video: 1.45Vp-p. Output impedance: 75 Ohms. All outputs are individually buffered. All monitors must be able to support the highest resolution of the DDC monitor connected to Output-1.
- Environmental Operating temperature: 32 to 100°F (0 to 38°C) Storage temperature: -22 to 140°F (-30 to 60°C) Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
- Desktop Size WxDxH (In.) 8x6.2x2.6
