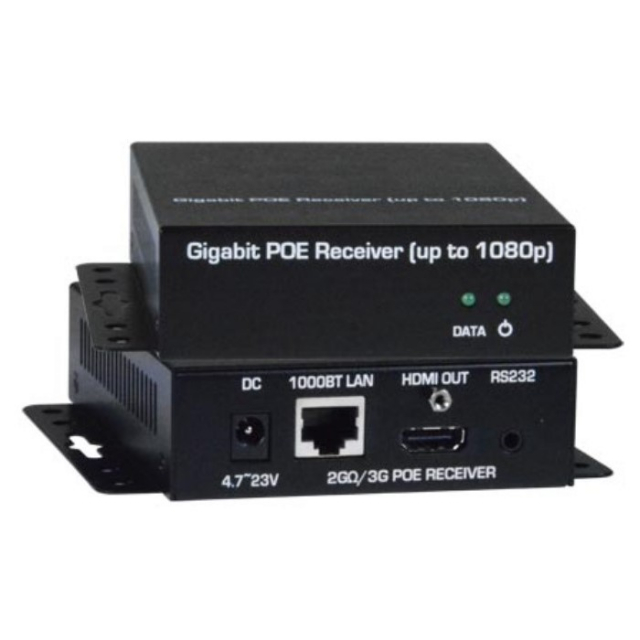

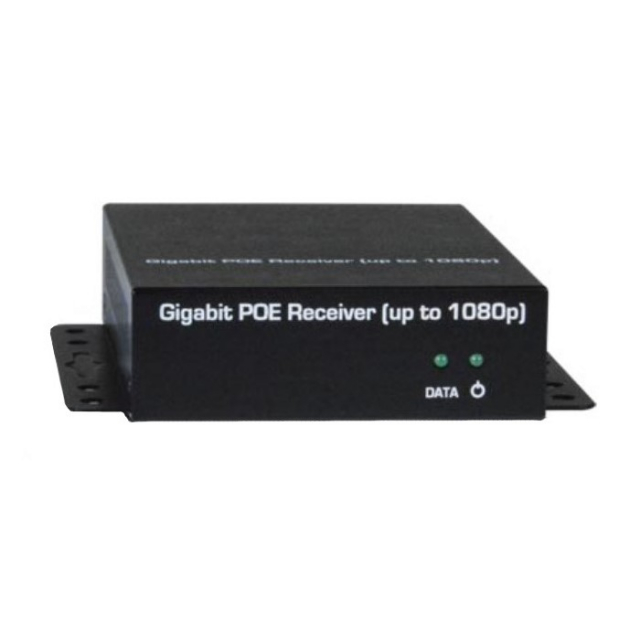

Network Technologies (NTI) st-iphd-r-2gopoe HDMI Over Gigabit IP Extender, Remote Unit

NTI, st-iphd-r-2gopoe, HDMI Over Gigabit IP Extender with POE CAT5e/6/7, Remote Unit with POE

Features:

• Supports HDTV resolutions to 1080p.
• Ideal solution for digital signage applications.
• Power over Ethernet (PoE) - power supply not required at the local or remote unit.
• Broadcast real-time HDMI video and audio signals to multiple display locations with a managed or unmanaged (also known as non-managed) network switch.
• Transmits an HDMI signal over one CAT5e/6/7 cable.
• Supports video wall installations from 1x2 to 16x16 screens.
• Plug-and-Play installation allows receivers to find the transmitter automatically on the same network. (Network configuration may be required for Managed network switch.)
• Easily expandable. Add remote units as you add monitors.
• Built-in scaler - watch compatible sources at 1080p.
• Supports 2-way RS232 commands (control software on a PC, or other automated control system hardware such as Control4 or Crestron) to control any devices attached to the matrix using RS232.
• Integrated mounting brackets for easy surface/wall mounting.
• Inexpensive CAT5e/6/7 cable replaces bulky video cables.
• Support for multiple transmitters requires a Managed network switch with VLAN/IGMP support. Standard LAN switches can only support one transmitter.

Each HDMI Over Gigabit IP Extender consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI display. The local and remote units can be connected together for a Point-to-Point connection via CATx cable or a Point-to-Many connection via a network switch. Support for multiple transmitters requires a managed network switch.
