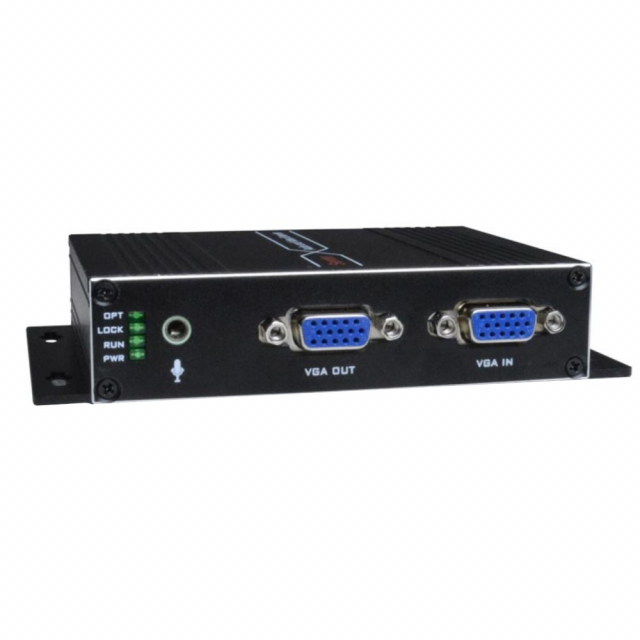

Network Technologies (NTI) st-fovars-lcv2 VGA Extender LC Singlemode/Multimode Fiber Cable
Brand:
Network Technologies (NTI)
Part #:
st-fovars-lcv2
Condition:
Brand New
Brand New $1,048.00 /Each
Manufacturer warranty Description
NTI, st-fovars-lcv2, VGA Extender via One LC Singlemode/Multimode Fiber Optic Cable
st-fovars-lcv2 Includes Only:
- One transmitter unit
- One receiver unit
- Two SFP modules for fiber connection
- Two power supplies
Features:
- Supports local and remote VGA monitors.
- Extend to 6.2 miles using singlemode cable.
- Extend to 1,640 feet using multimode cable.

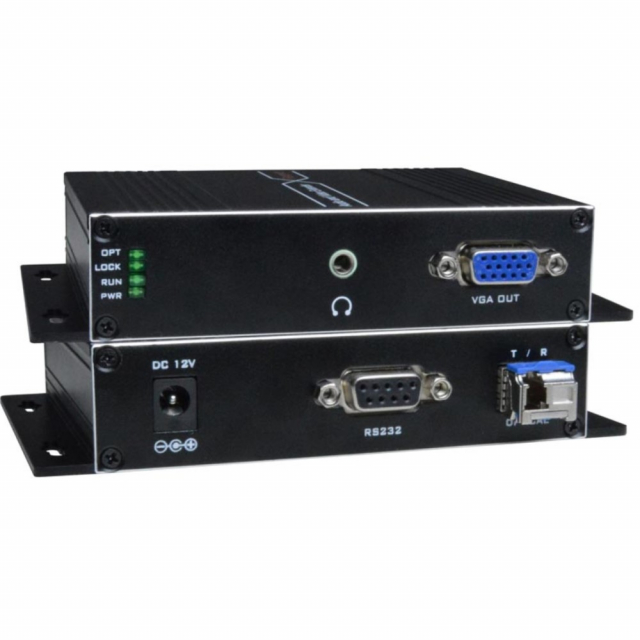

The XTENDEX® VGA Extender via Fiber Optic Cable locates a VGA display, stereo audio speakers and RS232 up to 6.2 miles (10 kilometers) away from a computer using a single LC singlemode fiber optic strand and 1,640 feet (500 meters) using multimode fiber optic cable. Each extender consists of a transmitter that connects to a computer and also supplies video to a local monitor, and a receiver that connects to a monitor.
Technical details
Main features
- Power Local and remote unit: Input: 100 to 240 VAC at 50 or 60Hz via AC adapter. Output: 12VDC, 1A Power consumption: Local unit: 3.6W Remote unit: 3.0W
- Dimensions WxDxH (in): 5.24x4.17x1.05 (133x106x27 mm)
- Environmental Operating temperature: 23 to 158°F (-5 to 70°C). Operating and storage relative humidity: 5 to 90% non-condensing RH.
- Max Distance 6.2 miles (10 km) over 9µm singlemode LC fiber optic cable. 1,640 feet (500 meters) over 50µm or 62.5µm multimode LC fiber optic cable.
