Network Technologies (NTI) st-c6fousbdp4k-lc Xtendex 10.2Gbps DisplayPort USB KVM Extender

Network Technologies Incorporated, st-c6fousbdp4k-lc, Xtendex 4K 10.2Gbps DisplayPort USB KVM Extender via One CAT6/7 Cable or LC Singlemode/Multimode Fiber Optic Cable

st-c6fousbdp4k-lc Includes Only:

• 1 x Local Unit
• 1 x Remote Unit
• 1 x FO4436 optical transceiver (local and remote)
• 1 x 72.83 in (1,850.00 mm) USB A to B cable
• 1 x Mounting Rack Metal Parts
• 2 x Power supplies (12V/2A)
• 2 x 3-Terminal Block for RS232

Features:

• Supports Ultra-HD 4Kx2K resolutions to 3840x2160 at30Hz YUV 4:4:4, HDTV resolutions to 1080p at60Hz, and up to 1920x1200 (WUXGA).
• Signal transmission via one CAT6/6a/7 cable or one single-strand singlemode/multimode LC fiber optic cable.
  • Using CAT6/6a/7 cable:
    • Extend a 4Kx2K signal up to 328 feet (100 m).
    • Extend a 1080p or 1920x1200 signal up to 492 feet (150 m).
  • Using singlemode 9-micron cable, extend to 6.21 miles (10 km).
  • Using multimode 50-micron cable, extend to 1,640 feet (500 m).
• fDisplayPort features supported:
  • DisplayPort 1.2
  • 36-bit Color
  • RGB, YCbCr 4:4:4, TCbCr 4:2:2
  • Dolby, DTS, Stereo, and LPCM Audio
  • Bandwidth up to 340 MHz (10.2 Gbps)
• HDCP compliant.
• Four transparent USB ports for self-powered and/or bus-powered USB peripheral devices (security cameras, printers, scanners, touch screen monitors, game controllers, flash drives, keyboards, mice, etc.).
  • Keyboard and mouse are hot-pluggable.
• Supports Plug-and-Play specification.
• Using an unmanaged Gigabit network switch, extend up to 32 pairs in Point-to-Point connections over IP.
  • Use the DIP switch on the transmitter and receiver to specify the ID for the unit.
    • Transmitter and receiver units with the same ID will connect to each other. (Only Point-to-Point connections are supported.)
• Supports full-duplex RS232 up to 115200 baud.
• EDID pass-through for the support of any DisplayPort monitor
• Mounting brackets included for easy surface/wall mounting.

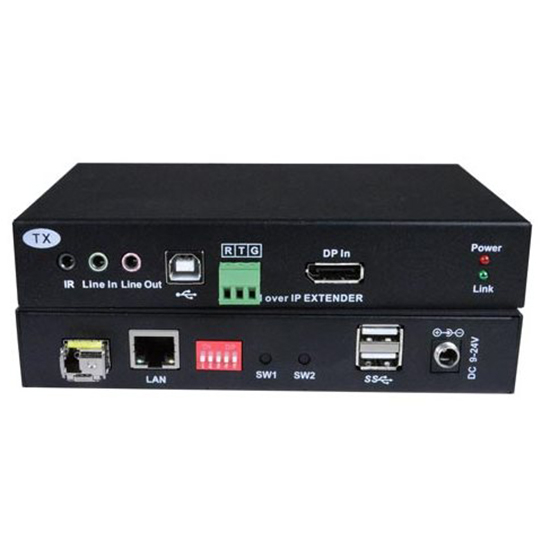

The XTENDEX® 4K 10.2Gbps DisplayPort USB KVM Extender via CAT6/7 or Fiber provides remote KVM (USB keyboard, USB mouse and 4Kx2K 30Hz UHD DP monitor) access to a USB computer up to 328 feet (100 m) away via CAT6/6a/7 cable, 6.21 miles (10 km) via simplex LC singlemode fiber optic cable, or 1,640 feet (500 m) via simplex LC multimode fiber optic cable. Each KVM extender consists of a local unit that connects to a computer, and a remote unit that connects to a DisplayPort monitor, bi-directional 3.5mm stereo audio speakers and microphone, RS232, and up to four USB devices (keyboard, mouse, flash drive, HDD, touchscreen display, etc).
