Network Technologies (NTI) splitmux-4k18gb-4-2r 4K 18Gbps HDMI Screen Splitter Multiviewer

NTI, splitmux-4k18gb-4-2r, 4K 18Gbps HDMI Quad Screen Splitter/Multiviewer

Features:

• Quad, Picture-in-Picture (PiP), Full Screen, and Custom display modes.
• Custom Display Mode: the size, position and selection of any or all windows are customizable.
• 2- and 3-source viewing is possible with this method.
• Maintain input aspect ratio if desired - no stretching necessary.
• Layer display windows and adjust transparency of each video source display.
• Supports input/output resolutions up to Ultra-HD 4Kx2K (3840x2160 and 4096x2160 at24/30/60Hz) in all display modes.
• Independent video in to video out resolution.
• HDMI features supported:
• HDMI 2.0
• Up to 36-bit color for input and 24-bit for output
• Input: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0; Output: RGB
• LPCM audio
• Bandwidth up to 600 MHz (18 Gbps)
• HDCP 2.2 and 1.4 compliant.
• Fluid, real-time video performance with up to 60 frames per second (fps) in all four quadrants.
• Zoom, pan, and crop the image from any source to focus on key areas.
• Switch audio independently of video from connected HDMI sources (e.g. source 1 and source 2 video are active while only source 3 audio is active).
  • Multiple audio sources can be simultaneously active in any display mode or preset layout.
  • Adjustable audio gain with VU level indicators for each input channel.
• A customized text label can be added for each video window to provide easy input identification (UMD).
• Control the multiviewer through Ethernet, RS232 serial port, keyboard/mouse commands, on screen display (OSD), front panel buttons, or optional IR remote.
•  Cascade multiviewers to display video from any number of video sources on one screen.
• Each video source in the cascade can be controlled directly from the Web Server graphical user interface under Custom Mode Settings.
• Backup and restore multiviewer configurations.
• Supported output resolutions can be selected or set to auto detect optimal resolution from the monitor's EDID.

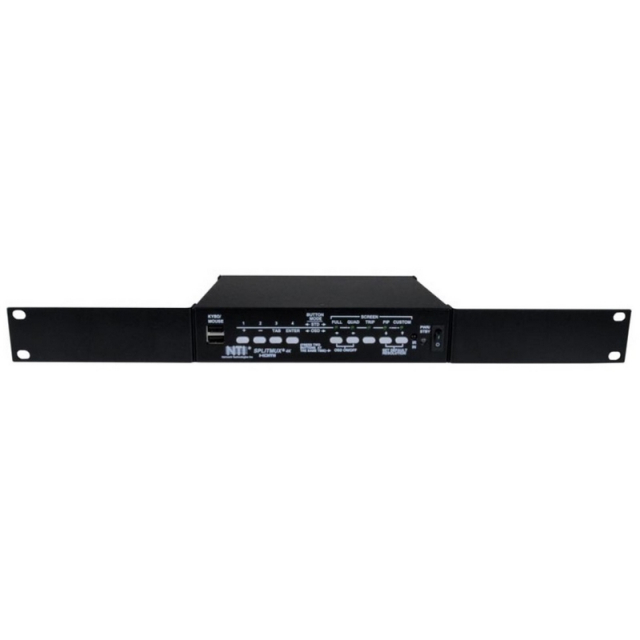

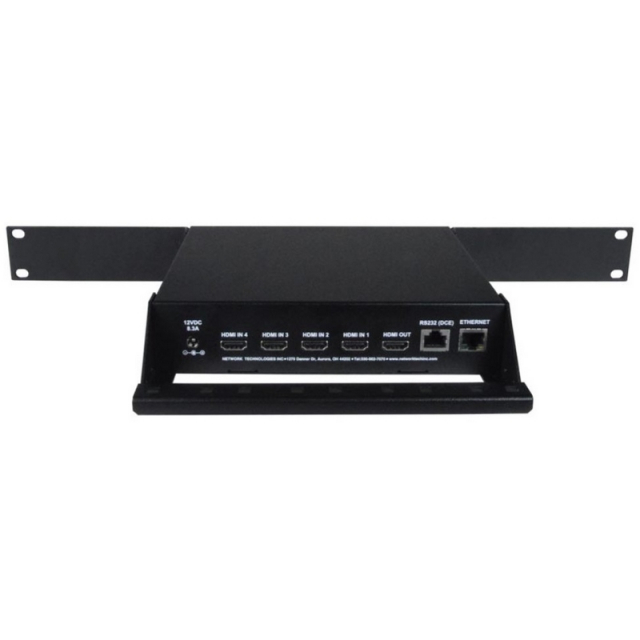

• 1RU rackmount kit and cable management shelf included.
  • Can be mounted so that the front panel buttons are facing the front or back of the rack

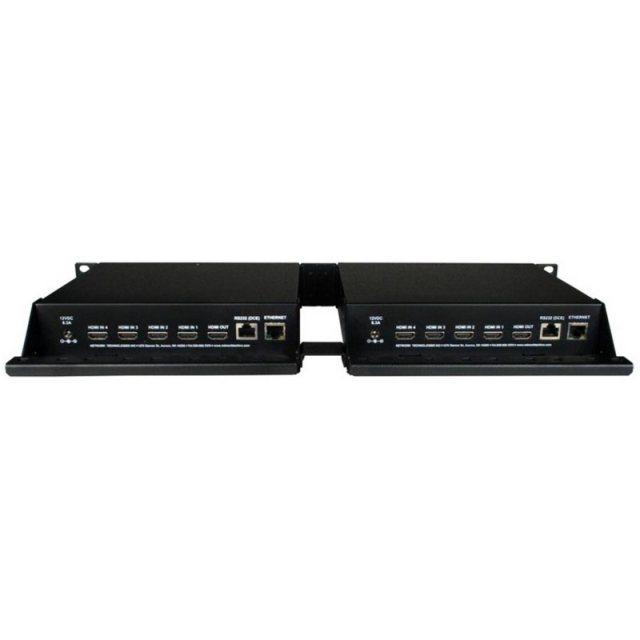

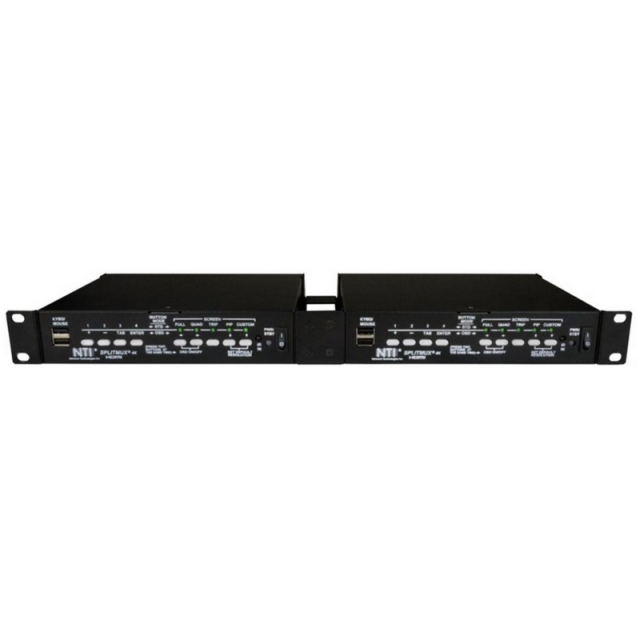

  • Available option: dual side-by-side rackmount units in 1RU

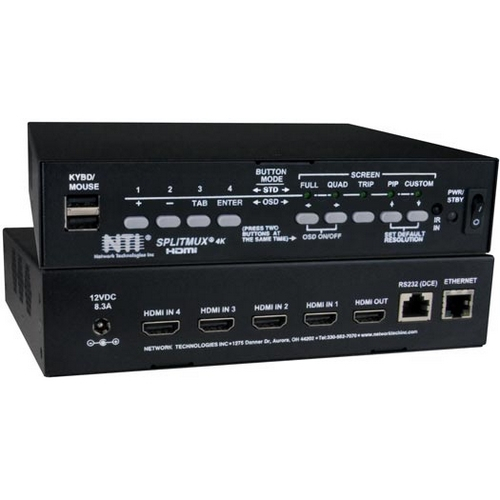

The SPLITMUX® 4K 18Gbps HDMI Quad Screen Multiviewer allows video from four different HDMI 2.0 Ultra-HD 4Kx2K 60Hz sources to be simultaneously displayed in real-time on a single monitor. It is capable of displaying the HDMI 2.0 video signals in quad, PiP, full, or custom mode.
