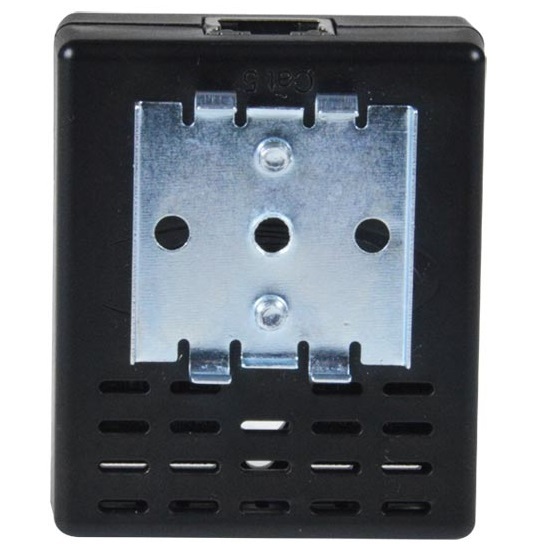

NTI e-sthsb-d Humidity Dew Point Sensor, DIN Mounted

Network Technologies, e-sthsb-d, Temperature/Humidity/Dew Point Sensor, DIN Mounted

Features:

• Applications from -4 to 185°F (-20 to 85°C) and 0 to 90% relative humidity.
• High resistance to external influences on the cable due to digital output signal.
• Temperature accuracy:
  • ±1.44°F (±0.80°C) for -4 to 41°F (-20 to 5°C).
  • ±0.72°F (±0.40°C) for 41 to 140°F (5 to 60°C).
  • ±1.62°F (±0.90°C) for 140 to 185°F (60 to 85°C).
• Humidity accuracy (at 77°F/25°C):
  • 10 to 80% relative humidity: ±4%
  • 20 to 80% relative humidity: ±3%
  • 80 to 90% relative humidity: ±4%
• Supports dew point measurement.
• RJ45 connector.
• Voltage Supply: 5VDC
• Current Consumption: 20mA
• Communication type: RS485
• Data rate: 96kbps
• DIN mountable
• Supports CAT5/5e/6/6a cable (24 AWG) up to 1,000 ft (305 m) (not included).
• Compatible with E-2D/5D/16D.
  • E-2D: only compatible with Rev C units (features two power inputs).
  • Not compatible with E-SEMS-16(U).
• Regulatory approvals: CE, RoHS
