Network Technologies (NTI) e-sths-lcdw Temperature/Humidity Sensor

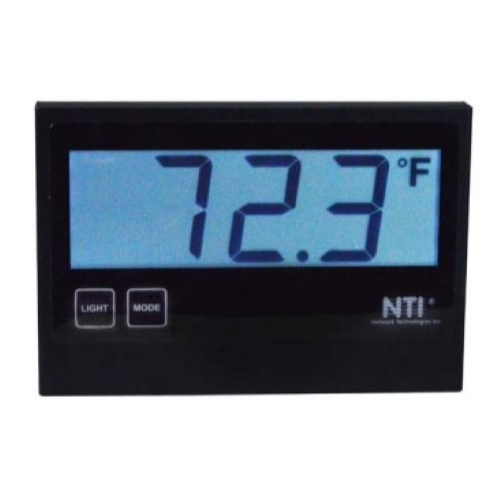

NTI, e-sths-lcdw, Temperature/Humidity Sensor with 3-Digit 7-Segment LCD Display 2" Character Height

Features:

• Use to detect and view real-time value of the sensor's temperature or humidity reading.
• Three-digit, seven-segment display with °F, °C and % indicators.
  • Character height: 2 in (50mm).
  • LCD display window dimensions WxH: 6.88x2.29 in (175x58mm).
  • Use the touch-sensitive Mode button on the LCD display to alternate between temperature and humidity.
  • Use the touch-sensitive Light button to activate an LED backlight for a clear view in dark environments.
• Applications from -4 to 140°F (-20 to 60°C) and 0 to 90% non-condensing relative humidity.
• Temperature accuracy:
  • ±0.72°F (±0.4°C) for 14 to 140°F (-10 to 60°C).
  • ±0.90°F (±0.5°C) for -4 to 14°F (-20 to -10°C).
• Humidity accuracy (at 86°F/30°C):
  • 10 to 80% relative humidity, ±3%
  • 80 to 90% relative humidity, ±4%
• Wall mountable.
• Dimensions WxDxH: 8x1.03x5.4 in (203x26x137 mm).
• Supports CAT5/5e/6/6a cable (24 AWG) up to 150 ft (45.7 m) (not included).
  • If a longer cable is used (up to 1,000 ft), the MODE button will not work when the display is illuminated by the LIGHT button.
• Compatible with E-2D/5D/16D.
  • E-2D: only compatible with Rev C units (features two power inputs).
  • Not compatible with E-SEMS-16(U).
• Max current consumption: 56mA at 5VDC
• Powered by E-2D/5D/16D.
• MTBF: 3,491,762 hours
• Communication type: RS485
• Regulatory approvals:
  • CE, RoHS.
  • TAA compliant.
• Compatible with E-FSC Fiber Converter/Extender.
  • Use to extend sensor up to 1.2 miles (2km) from the ENVIROMUX unit.
