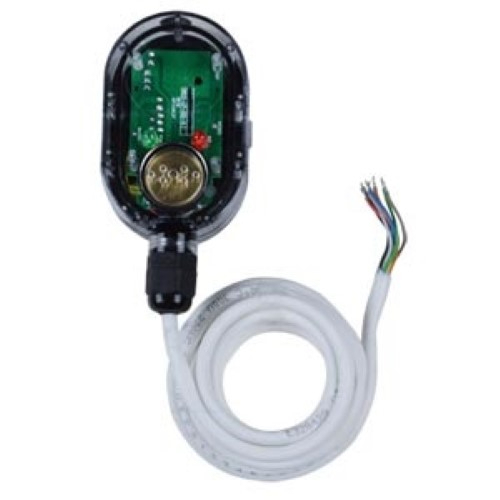

NTI e-sldo-a Spot Liquid Detector with Built-In Visual

NTI, e-sldo-a, Spot Liquid Detector with Built-In Visual & Audible Alarm

Features:

• Use to detect conductive fluids in confined areas
  • Place the sensor on a flat surface under HVAC equipment, dishwashers, washing machines, refrigerators, compressors, or electrical switchgear rooms and other potential leakage areas.
• Water level detection range: 0.03 to 0.53" (0.79 to 13 mm).
• DPDT alarm contacts.
• Audible alarm signal: 85 dB at 1 foot distance.
• Red LED for visual alarm signal.
• Green LED for power
• Current consumption: 30mA typical, 85mA maximum at 12VDC.
• Dimensions WxDxH: 2x4.13x0.19 in (51x105x30 mm).

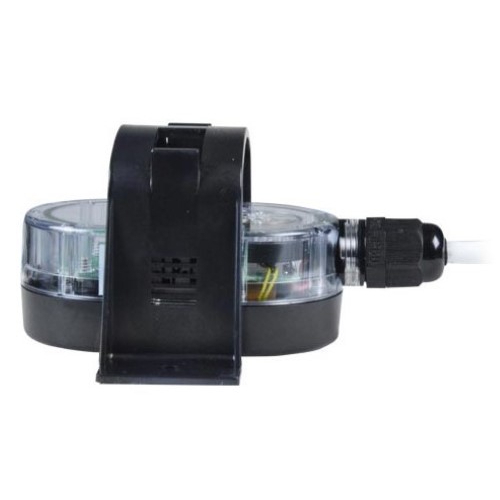

• Includes adjustable mounting bracket attached via adhesive strips or two screws.
• Operating temperature: 32 to 122°F (0 to 50°C).
• Powered by E-2D/5D/16D.
• Cable length: 4.9 ft (1.5 m)
• Regulatory approvals: CE, RoHS.
