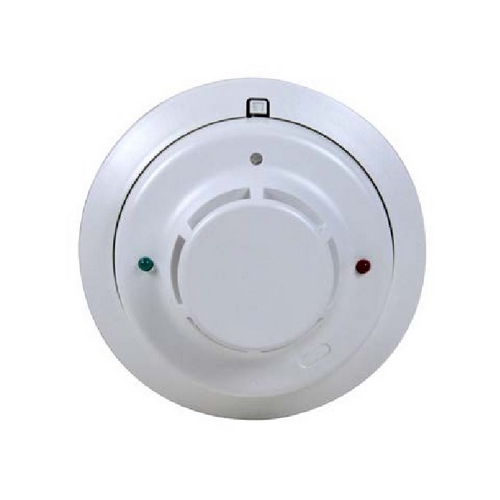

Network Technologies (NTI) e-sds-taa-v2 Smoke Detector Built-In Fixed-Temperature 135deg F

NTI, e-sds-taa-v2, Smoke Detector with Built-In Fixed-Temperature 135deg F (57deg C) Heat Sensor - UL Approved, TAA Compliant

Features:

• For warning of smoke.
• Photoelectric smoke detector.
• Built-in 135° F (57° C) thermal heat sensor.
• Connect to RJ45 or digital input sensor ports.
• Supports CAT5/5e/6 UTP or STP cables.
• Voltage Supply: 8.5 to 35 VDC
• Max Current Consumption:
  • 50uA max standby current at12VDC
  • 20mA max alarm current at12VDC
• Alarm Output: Relay (NO)
• Screw terminal
  • To connect to the RJ45 inputs use CAT5/5e/6 cable terminated at one end with RJ45 connector. Connect the un-terminated end to the sensor screw terminal.
• Maximum cable length: 1,000 ft (305 m)
• Powered by E-2D/5D/16D.
• Regulatory approvals: UL
• TAA compliant
