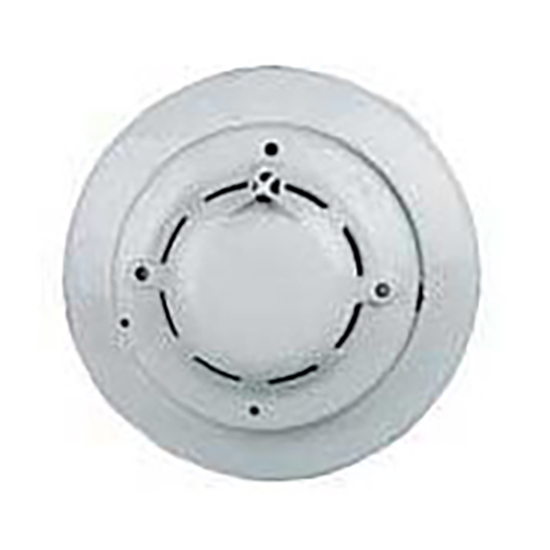

NTI e-sds-taa-pv2 Smoke Detector with Built-In Fixed-Temperature

NTI, e-sds-taa-pv2, Smoke Detector with Built-In Fixed-Temperature 135 degF (57 degC) Heat Sensor UL Approved, TAA Compliant

Features:

• For warning of smoke.
• Photoelectric smoke detector.
• Built-in 135° F (57° C) thermal heat sensor.
• Connect to digital input sensor ports.
• Voltage Supply: 8.5 to 35 VDC
• Max Current Consumption:
  • 50uA max standby current at12VDC
  • 20mA max alarm current at12VDC
• Alarm Output: Relay (NO)
• Screw terminal
  • To connect to the digital inputs use a 22 AWG 2-wire cable. Connect the other end to the sensor screw terminal.
• Maximum cable length: 1,000 ft (305 m)
• Includes 12V/1A Power Supply.
• Compatible with E-1W.
• Regulatory approvals: UL
• TAA compliant
• Compatible with the E-DI2-1W Digital Input Expander.
