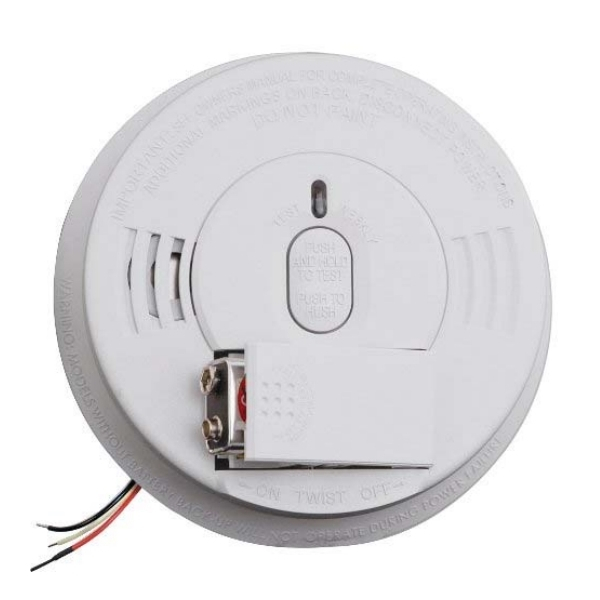

NTI E-SDS-120V Smoke Detection Sensor, 120VAC Wire-In

NTI, E-SDS-120V, Smoke Detection Sensor, 120VAC Wire-In with Battery Backup

Features:

• For warning of smoke and invisible fire particles.
• Ionization smoke detector.
• Applications from 40°F to 100°F (4°C to 38°C).
• Front loading battery door.
  • 9V battery backup (included) in case of power failure.
  • Battery run down protection.
• One button design for easy testing and HUSH mode activation control.
  • LED indicates four modes of operation: standby condition, alarm condition, alarm memory and hush mode.
  • Hush mode: silences false alarms for 8 minutes, or low battery warning for 13 hours.
• Voltage supply: 120VAC.
  • Pre-stripped wiring harness with tinned strands
• Audio alarm: 85dB at 10ft.
• Dimensions: 5" diameter x 1.75" depth.
• Dust cover prevents false alarms.
• Tamper resist feature.
• Links with up to 24 devices.
  • Max distance between first and last device: 1000ft (305m).
• Alarm memory indicates initiating alarm in interconnected systems.
• Use compatible relay (E-RLY-SDS120V) for connection to the ENVIROMUX system or other auxiliary warning devices such as external sirens or stairwell lighting.
  • E-RLY-SDS120V includes normally open and normally closed contacts.
  • Contact ratings: 10A at 120VAC, 5A at 30VDC.
• Regulatory approvals: UL.
