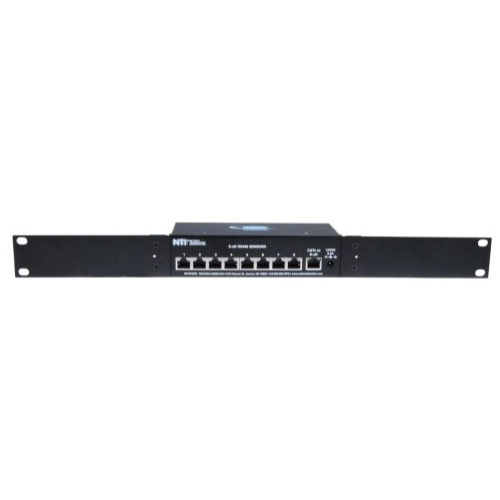

NTI e-rj8-rs485-r 8-port RJ45 RS485 Sensor Expander

NTI, e-rj8-rs485-r, 8-port RJ45 RS485 Sensor Expander, 1RU Rackmount

The E-RJ8-RS485 RJ45 Sensor Port Hub provides support for up to 8 NTI RS485 sensors when connected to an RJ45 Sensor port on an E-2D/5D/16D Enterprise Environment Monitoring System. When connected to a SYSTEM with firmware version 3.8 or newer, any NTI RS485 sensor connected to the Sensor Port Hub will be sensed and added to the list of sensors on the E-xD Summary Page in the web interface. Up to three E-RJ8-RS485 Sensor Port Hubs can be connected to an E-16D, up to two can be connected to a E-5D, and one can be connected to an E-2D.

Features:

• Supports the connection of up to eight NTI RS485 sensors using one RJ45 sensor port.
  • Up to three E-RJ8-RS485 can be connected to an E-16D
  • Up to two E-RJ8-RS485 can be connected to an E-5D
  • One E-RJ8-RS485 can be connected to an E-2D
• Provides RJ45 modular jacks for connecting NTI RS485 sensors such as temperature, humidity, temperature/humidity,
• AC voltage and current monitor, DC voltage monitor, and others.
• Supports CAT5/5e/6 cable up to 1000 ft. (305 m) between E-16D and hub. Sensor cable lengths connected to the hub
• are as specified per sensor (maximum 1000ft. each).(i.e. the E-S420MA-24V has a maximum specified CATx cable
• length of 500ft.(152m))
• Powered by 12VDC 2.5A external Power Supply (included).
• Compatible with E-2D/5D/16D (firmware version 3.8 and newer)
