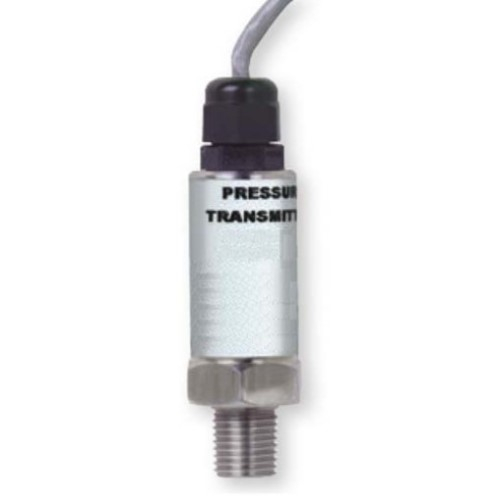

NTI e-pst500 Pressure Sensor Transmitter, 0 to 500 PSI

  • Brand NTI
  • Part # e-pst500
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Features:

  • NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
  • Robust 316 SS oil filled sensor provides shock and vibration resistance insuring stability in controlling pressure for process applications
  • A wide range of models and connections that can meet pressure measurement specifications from low to very high. Contact an NTI product consultant for details.

The E-PST500 Pressure Transmitter is ideal for OEMs with a 1% full scale accuracy sensor. The corrosion resistant 316L stainless steel wetted parts allow the transmitter to measure the pressure in a multitude of processes from hydraulic oils to chemicals.

Applications

  • Compressors
  • Pumping systems
  • Irrigation equipment
  • Hydraulic
  • Industrial process monitoring
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Reseller
Manufacturer Warranty

Technical Details

Reviews
ServiceCompatible with gases and liquids
Wetted MaterialsType 316L SS
Accuracy1.0% FS; 0.5% RSS
Temperature Limit0 to 200°F (-18 to 93°C).
Compensation Temperature Range0 to 175°F (-18 to 79°C).
Thermal Effect±0.02% FS/°F (includes zero and span)
Power Requirements10 to 30 VDC
Current Consumption10 mA maximum
Output Signal0 to 5 VDC
Response Time300 ms
Loop Resistance5K Ohms
Stability1.0% FS/year (Typ.).
Process Connection1/2" male NPT
Enclosure RatingNema 4X (IP65)
Mounting OrientationMount in any position
Regulatory ApprovalsCE
Product Details
ServiceCompatible with gases and liquids
Wetted MaterialsType 316L SS
Accuracy1.0% FS; 0.5% RSS
Temperature Limit0 to 200°F (-18 to 93°C).
Compensation Temperature Range0 to 175°F (-18 to 79°C).
Thermal Effect±0.02% FS/°F (includes zero and span)
Power Requirements10 to 30 VDC
Current Consumption10 mA maximum
Output Signal0 to 5 VDC
Response Time300 ms
Loop Resistance5K Ohms
Stability1.0% FS/year (Typ.).
Process Connection1/2" male NPT
Enclosure RatingNema 4X (IP65)
Mounting OrientationMount in any position
Regulatory ApprovalsCE
