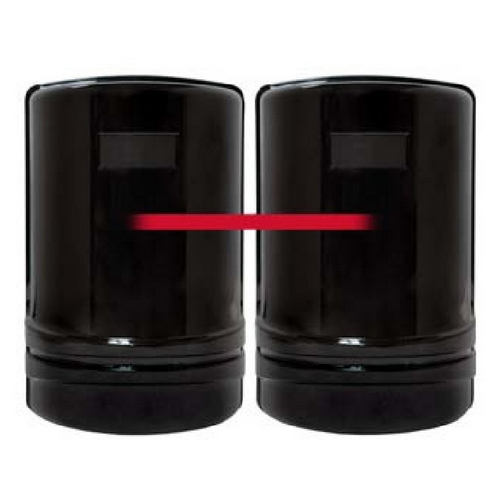

NTI e-pbd-so50-v2 Single Photobeam Detector Indoor/Outdoor to 50 ft

e-pbd-so50-v2 Includes Only:

• Single Photobeam Detector
• Mounting hardware

Features:

• Single-beam infrared motion sensor sends alert signal when invisible beam is broken.
• Sensing range: up to 50 feet (15m)
• Four selectable frequencies to reduce interference.
• Light Source: Infrared LED, wavelength 940nm
• LED Beam Spread Angle: Approximately ±10°
• Built-in AGC control to filter out lighting disturbances.

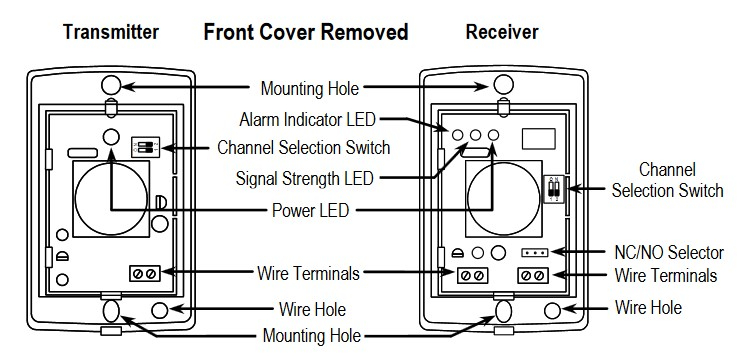

• LED indicator for power, signal strength, and alarm.
• NO/NC relay (set by jumper, default is N.C.)
• Screw terminal.
• Connect to digital input or RJ45 sensor ports on an ENVIROMUX system.
  • To connect to the digital inputs, use a 22 AWG 2-wire cable. Connect the other end to the sensor screw terminal.
  • To connect to the RJ45 inputs, use CAT5/5e/6 cable terminated at one end with RJ45 connector. Connect the un-terminated end to the sensor screw terminal.
• Operating temperature: -13 to 131°F (-25 to 55°C).
• Max current consumption:
• • Transmitter: 15mA at12VDC.
  • Receiver: 30mA at12VDC.
• Powered by the E-2D/5D/16D.
• IP65 enclosure.
