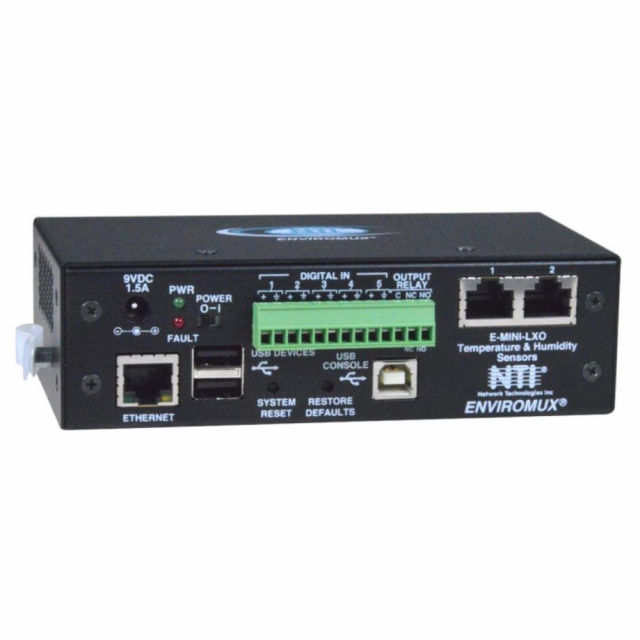

Network Technologies (NTI) e-mini-lxo Mini Environment Monitoring System

Part #:

e-mini-lxo

Condition:

Brand New

Choose Configuration

Industrial Mini Environment Monitoring System for High Temps with DIN Mount Kit Industrial Mini Environment Monitoring System for High Temperature Environments Mini Environment Monitoring System Only Mini Environment Monitoring System with Back-Up Battery Mini Environment Monitoring System with Back-Up Battery and DIN Mount Kit Mini Environment Monitoring System with DIN Mount Kit

Check availability

Manufacturer warranty

Description

Features:

Monitor and manage server room environmental conditions over IP.
2 temperature/humidity sensors.
5 digital inputs sensitive to contact closure.
Sensors are hot plugable.
One output relay for control of external devices.
Relay activates upon alarm or via the user interface.
Supports NTI's IP network video cameras for live view of any facility.
One integrated view - see different Web cameras side-by-side with physical and environmental parameters.
Monitor (ping) up to 16 IP network devices.
Alerts are sent if devices are not responding.
Two USB ports for connecting USB modem or for downloading log data to USB flash drive, and one USB console port for serial terminal interface.
Alerts are sent when there is a power outage and when power returns.
Create multiple alerts for any installed sensor.
Sensor conditions (events) can be configured to trigger alerts by themselves, and/or be used in combination with other events to trigger Smart Alerts.
Configure up to 50 events.
Up to 20 Smart Alerts can be configured to use different event combinations to send alert messages.
Alerts are posted in message log, which is accessible through Web user interface.
Automatically configures network settings received from a connected DHCP server.
If a DHCP server is not found, the default static IP address will be used.
Integrates with various Open Source monitoring packages - Nagios, MRTG and others.
The unit can be polled via SNMP.
Linux inside.
Supports network security scanners.
Flexible Zero-RU mounting.

The ENVIROMUX® Mini Environment Monitoring System (EMS) monitors critical environmental conditions (such as temperature, humidity, and water leakage) that could destroy network components in your server room. When a sensor goes out of range of a configurable threshold, the system will notify you via email, SNMP traps, web-page alerts, a visual indicator (red LED), voice phone calls (via Automatic Voice Dialer System), and SMS messages (via email-to-SMS or external USB modem).

Check availability

Technical details

Main features

Configuration Mini Environment Monitoring System Only
Power 110 or 220 VAC at 50 or 60 Hz via AC adapter
Dimensions W x D x H: 5.82 x 3 x 1.75 in (148 x 76 x 44 mm)
USB Port Two female USB Type A connectors for connecting USB modem or for downloading log data to USB flash drive. One female USB Type B connector for connecting a PC for serial terminal access.
Protocols HTTP/HTTPS, SNMP V1/V2c/V3, SMTP, TCP/IP, Syslog, SNTP, DHCP, SSHv2, SSLv3, TLS v1.2, LDAPv3, AES 256-bit, 3DES, Blowfish, RSA, EDH-RSA, Arcfour, IPV6, WAP 2.0
Ethernet Port One female RJ45 connecto. 10/100 Base-T Ethernet interface.
Regulatory approvals CE, RoHS EN51055, EN50121-3-2
Output relay One screw terminal pair. Potential-free relay switch contacts. Maximum switching load: 1A at 125VAC or 30VDC.
Dry Contact Closures Five screw terminal pairs for connecting dry contact devices and the liquid detection sensor. Potential-free. Output voltage: +5 V DC Current limited to 10 mA Maximum resistance to close contact: 300K Ohm
Temperature/Humidity Inputs Two female RJ45 connectors for connecting temperature sensors, humidity sensors and/or combined temperature/humidity sensors.
