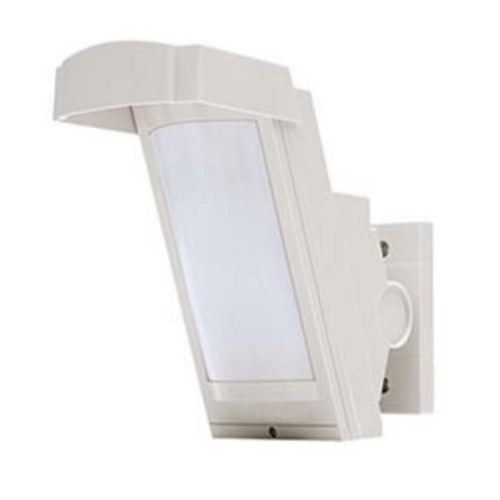

Buy NTI e-imd-ohm, High-Mount Outdoor Infrared Motion Sensor

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

High-mount outdoor weatherproof sensor with 94 detection zones.
Drastically reduces false and missed alarms caused by severe outdoor environmental changes.
Upper and lower area must be activated to generate an alarm condition.
Summer night compensation, advanced temperature compensation, and vegetation sway analysis logic.
Ideal detection area setting - adjustable length/spot detection.
LED indicators for operation and system status.
Unwanted detection areas can be eliminated using the included area masking seal.
Tamper switch opens when cover is removed.
Screw terminal.
Connect to digital input or RJ45 sensor ports on an ENVIROMUX system.
To connect to the digital inputs, use a 22 AWG 2-wire cable. Connect the other end to the sensor screw terminal.
To connect to the RJ45 inputs, use CAT5/5e/6 cable terminated at one end with RJ45 connector. Connect the un-terminated end to the sensor screw terminal.
IP54 compliant.
Powered by E-2D/5D/16D.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Current consumption	35mA at 12VDC
Maximum cable length	520 ft (160 m) (22 AWG)
Operating temperature	-4 to 140°F (-20 to 60°C)
Mounting height	8.3 to 10 feet
Registers movement in area covered	13/18/30/40 ft and 85° wide

Current consumption	35mA at 12VDC
Maximum cable length	520 ft (160 m) (22 AWG)
Operating temperature	-4 to 140°F (-20 to 60°C)
Mounting height	8.3 to 10 feet
Registers movement in area covered	13/18/30/40 ft and 85° wide

Note: Please read description carefully. Do not base your order on the picture presented.
