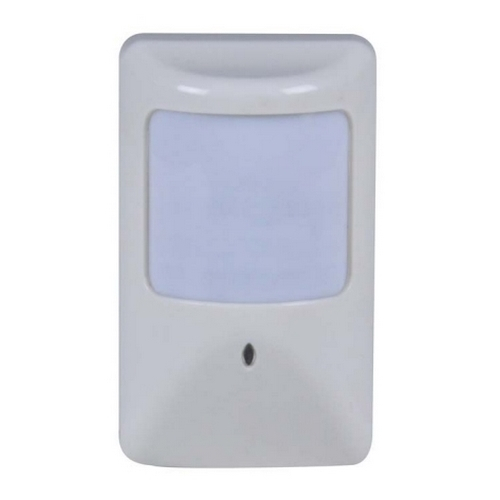

Network Technologies (NTI) e-imd-lcv2 Low-Cost Infrared Motion Sensor
Brand:
Network Technologies (NTI)
Part #:
e-imd-lcv2
Condition:
Brand New
Brand New $39.05 /Each
There is a $100.00 minimum order required when purchasing "Network Technologies (NTI)" products
$39.05 /Each
There is a $100.00 minimum order required when purchasing "Network Technologies (NTI)" products
Manufacturer warranty Description
e-imd-lcv2 Includes Only:
- NTI E-IMD-LCV2 Infrared Motion Detector
- 110-240VAC, 50 or 60Hz-12VDC/1A AC Adapter (E-IMD-LCV2P model only)
- Country-specific Line Cord (E-IMD-LCV2P model only)
- Mounting hardware
Features:
- Registers movement in area covered: 39x39 ft (12x12 m), 110° wide.
- Condition display via LED.
- Intelligent logic control prevents false alarms.
- Wall mount or hang in a corner.
- Good RFI protection.
- Screw terminal.
- Connect to digital input or RJ45 sensor ports on an ENVIROMUX system.
- To connect to the digital inputs, use a 22 AWG 2-wire cable. Connect the other end to the sensor screw terminal.
- To connect to the RJ45 inputs, use CAT5/5e/6 cable terminated at one end with RJ45 connector. Connect the un-terminated end to the sensor screw terminal.
- Connect to digital input or RJ45 sensor ports on an ENVIROMUX system.
- Current consumption: 20mA at 12VDC.
- Powered by the E-2D/5D/16D.
- Operating temperature: 14 to 122°F (-10 to 50°C)
- Includes mounting bracket for installing the sensor to a ceiling or wall.
Technical details
Main features
- Operating Voltage 8-15VDC
- Current Consumption less than 20mA (@12VDC)
- Switch NC
- Operating Temperature -10 to 50°C
- Operating Humidity 0-95% RH non-condensing
- Alarm Output NO/NC (optional)
- Alarm Indicator Red LED
- Mounting height 2.2m
- Mounting mode wall-mounted
- Detecting distance 12m
- Detecting angle 110 degree
- Anti-dismantle (Tamper) switch NC switch
