NTI e-di16dor16-v22r Digital Input/Output Expander

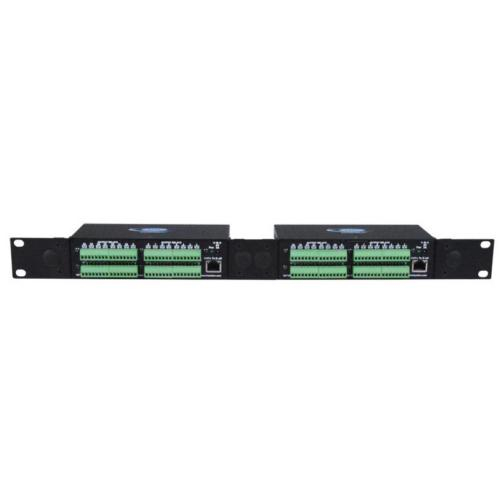

Network Technologies, e-di16dor16-v22r, Digital Input/Output Expander, Normally-Open Relay Contact Outputs, 1RU Dual Side-by-Side Rackmount

Features:

• Adds 16 digital inputs and 16 digital normally-open relay contact outputs to the E-2D/5D/16D
• Interfaces with the E-16D via the RJ45 Sensor Port
  • Each E-16D supports up to 16 E-DI16DOR16-V2.
• Digital inputs:
  • 16 screw terminal pairs for connecting dry contact devices
  • One screw terminal pair for tachometer; 0 to 255 Hz
  • Accepts 26 to 16AWG wire
  • Potential free
  • Voltage range: 0 to +36VDC
  • Over-voltage surge protected
• Digital outputs:
  • 16 screw terminal pairs for normally-open relay contact outputs
  • Accepts 26 to 16AWG wire
  • Potential free
  • Galvanic isolation: 1kV
  • Fused
• Control via SNMP:
  • Requires read-write community configuration.
  • Digital inputs are fixed values (not writable) while output relays are writable.
  • Locate OIDS using a MIB browser.
• Includes 5V/3A power supply.
• Compatible with E-16D.
