Network Technologies (NTI) e-dcvd-24v-m DC Voltage Detector, 24-36VDC

Name: Network Technologies (NTI) e-dcvd-24v-m DC Voltage Detector, 24-36VDC
Brand: Network Technologies (NTI)
SKU: e-dcvd-24v-m
Price: 82.15 USD
Availability: InStock

Brand: Network Technologies (NTI)

Part #:

e-dcvd-24v-m

Condition:

Brand New

$82.15 /Each

There is a $100.00 minimum order required when purchasing "Network Technologies (NTI)" products

Typically In Stock

Check availability

$82.15 /Each

There is a $100.00 minimum order required when purchasing "Network Technologies (NTI)" products

Manufacturer warranty

Description

Features:

Measurement range: detects voltage from 24-36 VDC.
- Contacts remain closed between 26-36 VDC
- Contacts open when monitored voltage drops below 24 VDC
Measurement indication: Alarm or Normal.
Sensor type: open/closed contact switch.
Includes 6-foot 2-wire cable to connect to the ENVIROMUX-MINI.
Attached 3-foot power cord with tinned leads on 3 wires.
For use with ENVIROMUX-MINI purchased on or after 11/1/2007.
Regulatory approvals: RoHS

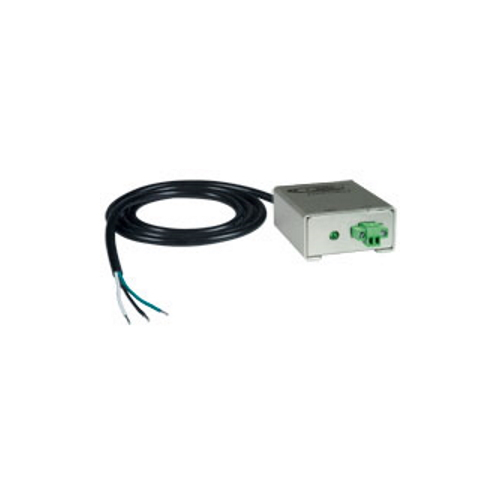

The NTI ENVIROMUX-DCVD-24V-M is a DC voltage detection contact sensor which, when connected to an ENVIROMUX-SEMS-16 or ENVIROMUX-MINI, closes when the monitored voltage is in the 26-36VDC range. The contacts will remain closed unless the monitored voltage drops below 24VDC, at which point the contact will open. A 2-wire sensor cable (6 foot cable included), is used to connect to an ENVIROMUX, which can be configured to send alerts based on the presence or lack of DC voltage.

For more information, please see Data Sheet
