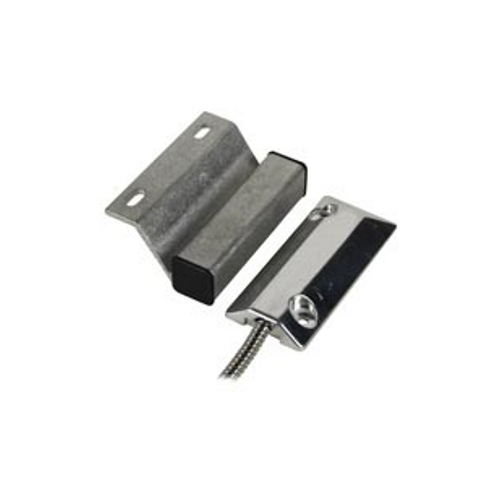

Network Technologies (NTI) e-dcsr-u Rugged Door Contact Sensor with Magnet

Rugged Door Contact Sensor with Universal-Style Magnet

Features:

• Monitors access with a magnetic bridge sensor (no special inserts necessary).
• Ideal for commercial and industrial installations in harsh environments.
• Heavy-cast metal housing with 3.06-feet armored cable.
• Floor-mounting hardware included.
• niversal-style magnet option has a smaller width and depth that provides greater installation flexibility.
• For normally open or normally closed circuit connected.
• Wide actuating gap up to 2.5 inches (63 mm).
• Screw terminal.
  • Connect to digital input or RJ45 sensor port on an ENVIROMUX system.
    • To connect to the digital inputs, use a 22 AWG 2-wire cable. Connect the other end to the sensor screw terminal.
    • To connect to the RJ45 inputs, use CAT5/5e/6 cable terminated at one end with RJ45 connector. Connect the un-terminated end to the sensor screw terminal.

For more information, please see Data Sheet
