NTI, e-av-lc-7, Enviromux Low-Cost Air Velocity Sensor, 7 ft

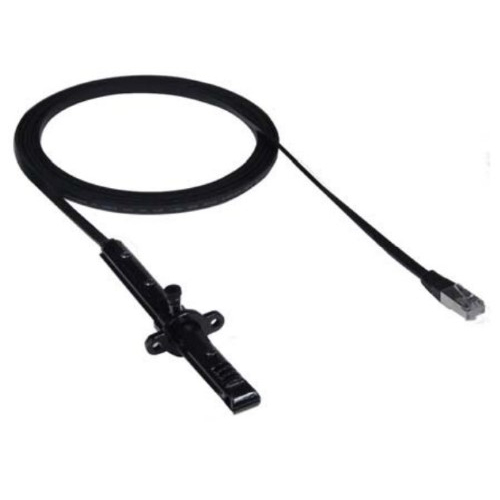

The NTI Enviromux E-AV-LC-7 Air Velocity Sensor monitors airflow rate when connected to an E-16D, E-5D, or E-2D Enterprise Environment Monitoring System (SYSTEM). When connected to a SYSTEM via the 7-foot cable provided, the airflow the rate can be monitored and the SYSTEM can be configured to alert users as to variations in that movement.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Measurement Medium	air velocity
Flow Range	0-82 ft/s (0-25 m/s)
Connector	RJ45 Male
Cable Length	7 feet (+ coupler to extend up to 1000 feet)
Accuracy	±1.6 ft/s (±0.5 m/s) from 0 to 49 ft/s (0 to 15 m/s) at21 °C
Operating temperature	32 to 158 °F (0 to 70 °C)
Power	5VDC and 12VDC from the SYSTEM
Current consumption	5V at 15mA and 12V at 60mA
Compatible with	E-2D / -5D / -16D
Powered by	E-2D (REV C only) / -5D / -16D
Probe dimensions	6.3x0.6 inches (160x15 mm)
Probe material	PA 2200 Plastic
Certifications	CE certified, RoHS compliant

Product Details

Measurement Medium	air velocity
Flow Range	0-82 ft/s (0-25 m/s)
Connector	RJ45 Male
Cable Length	7 feet (+ coupler to extend up to 1000 feet)
Accuracy	±1.6 ft/s (±0.5 m/s) from 0 to 49 ft/s (0 to 15 m/s) at21 °C
Operating temperature	32 to 158 °F (0 to 70 °C)
Power	5VDC and 12VDC from the SYSTEM
Current consumption	5V at 15mA and 12V at 60mA
Compatible with	E-2D / -5D / -16D
Powered by	E-2D (REV C only) / -5D / -16D
Probe dimensions	6.3x0.6 inches (160x15 mm)
Probe material	PA 2200 Plastic
Certifications	CE certified, RoHS compliant
