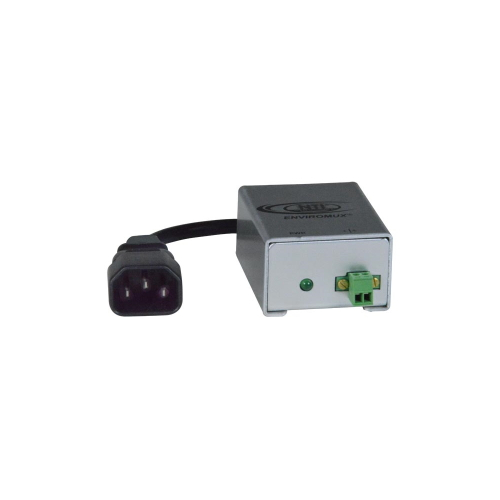

AC Voltage Detector with Relay & IEC C14 Socket

Features:

Monitors the presence or absence of AC voltage, 50-250 VAC.
2-position screw-terminal connection.
Supports 2-wire sensor cable up to 1,000 feet (305 meters).
With an universal 250V IEC C14 socket.

The ENVIROMUX AC Voltage Detector with Relay detects voltage from 50 to 250 VAC when connected to an environmental monitoring system with dry contact inputs, battery, sensor, or other device. The internal relay closes when sensing voltage above 60 VAC and opens when sensing voltage 55 VAC and below.

For more information, please see Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Measurement range	detects mains voltage from 50 to 250 VAC
Measurement indication	Alarm or Normal
Sensor type	open/closed contact switch
Relay	Includes internal relay
Maximum close voltage	90VAC @ 60Hz, 108VAC @ 50Hz
Minimum open voltage	10VAC @ 60Hz, 12VAC @ 50Hz
Cable	Includes 6-foot (1.8-meter) 2-wire cable to connect to an environmental monitoring system
E-ACVDRLY-C14	Universal 250V IEC C14 socket on attached 6-inch (0.15-meter) cord
Maximum switching current	500mA
Maximum hold-off voltage	250VDC
Galvanic isolation	1.5kVDC/peak AC
Operating temperature	32 to 140°F (0 to 60°C)
Storage temperature	32 to 158°F (0 to 70°C)
Operating and Storage Relative Humidity	17 to 90% non-condensing RH
MTBF	3,539,338 hrs
Regulatory approvals	CE, RoHS

Product Details

Measurement range	detects mains voltage from 50 to 250 VAC
Measurement indication	Alarm or Normal
Sensor type	open/closed contact switch
Relay	Includes internal relay
Maximum close voltage	90VAC @ 60Hz, 108VAC @ 50Hz
Minimum open voltage	10VAC @ 60Hz, 12VAC @ 50Hz
Cable	Includes 6-foot (1.8-meter) 2-wire cable to connect to an environmental monitoring system
E-ACVDRLY-C14	Universal 250V IEC C14 socket on attached 6-inch (0.15-meter) cord
Maximum switching current	500mA
Maximum hold-off voltage	250VDC
Galvanic isolation	1.5kVDC/peak AC
Operating temperature	32 to 140°F (0 to 60°C)
Storage temperature	32 to 158°F (0 to 70°C)
Operating and Storage Relative Humidity	17 to 90% non-condensing RH
MTBF	3,539,338 hrs
Regulatory approvals	CE, RoHS

Note

Note: Please read description carefully. Do not base your order on the picture presented.
