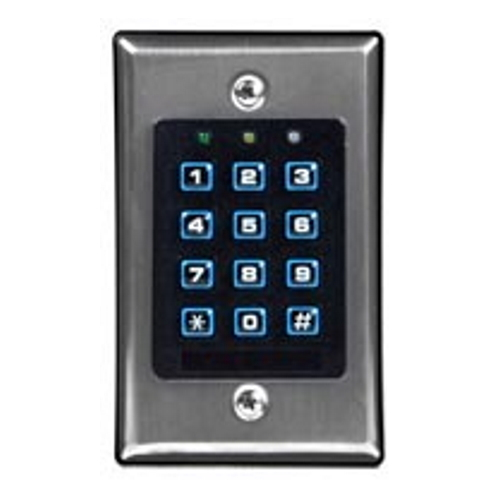

Network Technologies (NTI) e-ack-v2p Access Control Digital Keypad, Powered

Features:

• Two output full feature digital keypad for door lock and equipment control
  • Using Output 1 ("Door Lock") requires addition of 12VDC external power supply (not included)
  • The use of Output 1 will not provide support for alert messages through the ENVIROMUX
• Single-User Mode or Multi-User Mode operation selectable
• Compatible with fail-safe or fail-secure electric door lock
• Operates in stand alone electric door lock or dual door inter-lock system
• Door auto re-lock or timing re-lock after entry
• Door forced open warning and door propped-up warning
• 100 user codes for door lock control (Output 1) and 10 user codes for Output 2
• Multi-task super user code for inhibiting (refuse access with user codes), overriding door lock (keep door open); and operating the two outputs under any condition.
• Duress code for door opening and reporting in the event of the owner opening the door under duress
• Three options of keypad system lock-up after successive false code entry
• The two outputs are configurable to operate for 1-999 second timing mode, start / stop mode or start / stop mode with 2 or 3 digit accelerated mode.
• Auto or Manual user code entry mode for user convenience or security enhancement
• Pacifier tone and door open announcer can be set to OFF for silent environments
• Standby flashing LED indicator can be turned OFF for people that do not like flashing LED at night
• Four egress delay and warning options for user convenience or security enhancement
• Built-in tamper switch with N.C. dry contact
• Indoor Use Only. Flush mount on U.S. electrical single gang box or surface mount on the supplied plastic box
• Powered by E-2D/5D/16D
• Dimensions (WxDxH): 2.83" x 1.69" x 4.57" (72x43x116 mm)

For more information, please see Data Sheet
