NTI 3gsdi-usb3-cptr-hdo 3G-SDI to USB 3.0 Video Capture Device

Network Technologies Incorporated, 3gsdi-usb3-cptr-hdo, 3G-SDI to USB 3.0 Video Capture Device with HDMI Loopout

3gsdi-usb3-cptr-hdo Includes Only:

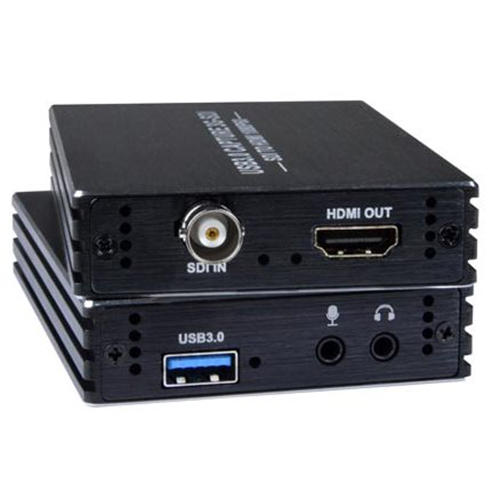

• NTI 3GSDI-USB3-CPTR-HDO USB 3.0 Video Capture Recorder with HDMI Output
• 1 x USB 3.0 Type A male to Type A male cable - 3.48 ft (1.1 m)
• 1 x HDMI Male to Male Cable - 4.79 ft. (1.5m)
• URL Slip with path to this manual

Features:

• Converts SD/HD/3G-SDI and stereo audio input signals to high quality USB 3.0 output.
  • Automatic input equalization - compensates for attenuation on the incoming signal and automatically equalizes cables for the following distances using 75 Ohm RG6 BNC cables:
    • 3G-SDI 1920x1080 at60Hz to 328 feet (100 meters).
    • HD-SDI 1280x720 at60Hz to 656 feet (200 meters).
    • SD-SDI 525i at60Hz and 625i at50Hz to 984 feet (300 meters).
  • Automatic output reclocking - reshapes and restores timing of digital video signal at output, eliminating high frequency jitter.
• Compliant with UVC and UAC standards.
  • UVC protocol allows the host computer/laptop to set the parameters for the USB stream such as resolution, frame rate, and aspect ratio.
• Supports resolutions to 1920x1080 at60Hz.
• Independent HDMI loop-through allows the original full-quality source to be routed to monitors or other equipment.
  • Fixed resolution: 1920x1080 at60Hz.
• Auto-detects 3G-SDI, HD-SDI, or SD-SDI format.
  • Supports SMPTE 259M-C, SMPTE 292M, SMPTE 424M, SMPTE 425M Level A and B video interfaces used for broadcast-grade video.
• 3.5mm stereo audio input for microphone and output for use with headphones, powered speakers, or connection to an amplifier/receiver.
  • 3.5mm audio output only plays the SDI audio.
  • USB audio stream embeds the microphone audio and plays the SDI audio simultaneously.
• Multiplatform support: Windows 7/8/10/11, Linux, Mac OS 10/11/12.
• Easily stream content online - compatible with most third party software, such as: OBS, Zoom, Teams, Twitch, YouTube, Facebook, Twitter, etc.
• Plug-and-play functionality - no software needed.
  • Once plugged in, the device is identified automatically as a we-bcam.
• No power supply is necessary - powered from USB port.
• Compact/portable design - perfect for recording in the field or on the go.
• Ideal for live broadcast, online meetings/classes, gaming, houses of worship, and other A/V applications.

The 3G-SDI to USB 3.0 Video Capture device is used to record or stream an SD/HD/3G-SDI signal via USB 3.0 at up to 350 MB/s. It features an HDMI loop output for local display, as well as separate 3.5mm stereo audio input/output connectors.
