Buy NEC NP-M430WL, M Series DLP Classroom Projector 4.300 Lumen WXGA Laser

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

NP-M430WL Includes Only:

Remote control
Batteries
Power cord
RGB signal cable
User manual CDROM
Quick Start Guide

Features:

Up to 30,000 hour laser light source eliminates maintenance requirements and lowers total cost of ownership
DLP technology provides engaging images in any environment
Vertical lens shift provides installers with flexibility when the ideal mounting location is not possible
Direct power on and quick power off help maximize presentation time
Tilt free and portrait capability open possibilities for non-typical projection applications
Lens Shift
Direct Power On
Quick Power Off
Tilt Free
Portrait
ECO Mode technology
4K Ready

M Series laser projectors using DLP technology provide all the essential features that you need to simply and reliably connect with your audience at an affordable price. The 4300-lumen, WXGA (1280 x 800) native resolution NEC M430WL is ideal for classrooms that need a clear image that can be seen all around the room. Enjoy the convenience of vertical lens shift, direct power on and quick power off. The M Series offers a long term, maintenance free solution and a low total cost of ownership.

For more information, please see Product Manual

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Display

Aspect Ratio

16x10

Maximum Resolution

HDMI1 (3840x2160 at60Hz)
HDMI2 (3840x2160 at30Hz)
Analog (1920x1080 at60Hz)

Native Resolution

WXGA 1280x800

Contrast Ratio (Typical)

2000:1

Synchronization Range

Horizontal (Analog/Digital)

15KHz, 24-100kHz (RGB: 24kHz or over)

Vertical

48-100, 120Hz

Signal Compatibility/Connectivity

SD/HD Video Signal Compatibility

480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K UHD

Macintosh Signal Compatibility

Yes

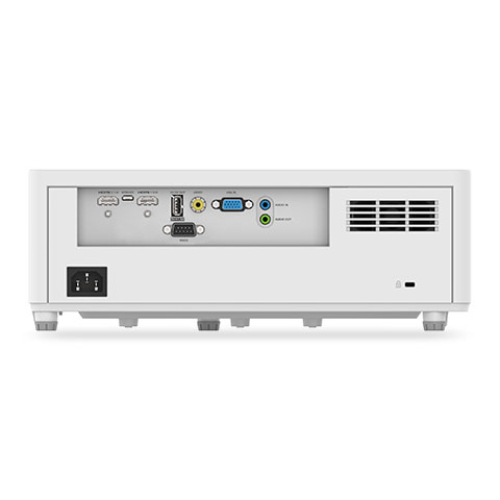

Input Terminals

RGB1 (analog): VGA 15-pin D-sub
RGB1 (digital): HDMI w/ HDCP (v2.2/1.4)
RGB2 (digital): HDMI w/ HDCP (v2.2/1.4)
Video 1: RCA
Audio 1: Stereo Mini Jack

PC Signal Compatibility

VGA, SVGA, XGA, SXGA, WUXGA

External Control

RS-232 (D-Sub 9pin), IR

Output Terminals

Audio: Stereo Mini Jack
Audio Out: Stereo Mini Jack

Power Consumption (Typical)

240W

Power Requirements

100-240V AC, 50/60 Hz

Input Current

Physical Specifications

Dimensions (WxHxD)

Product: 13.3 x 4.7 x 10.4 in. (337 x 119.3 x 265 mm)
Shipping: 19.5 x 15.2 x 7.7 in. (496 x 387 x 195 mm)

Weight

Net Weight: 9.7 lbs. (4.4 kg)
Shipping: 14.1 lbs. (6.4 kg)

Environmental Conditions

Operating Temperature

41-104°F / 5-40°C

Storage Temperature

14-140°F / -10-60°C

Operating Humidity

20 to 85% Humidity (Non-Condensing)

Storage Humidity

20 to 95% Humidity (Non-Condensing)

Optical

Display Technology

0.65" DLP

Light Output(Lumens)

4,300 Normal

Throw Ratio

1.5 - 2.35:1

Projector Angle

7.7 - 9.8° tele / 12.1 - 15.4° wide (at 60")

Keystone Correction

Horizontal (manual), Vertical (manual)

Lamp Type

20,000 hours normal / 30,000 hours eco

Screen Size (Diagonal)

30 - 300 in. / 0.76 - 7.62m

Projection Distance

3 - 50 ft. / 0.9 - 15.2 m

Lens

Zoom: 1.6x
Focus: Manual
F number, fnumber: F:2.5~3.26 /f=20.911~32.62mm

Mechanical

Installation Orientation

Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear

Regulations

USA: UL (UL60825-1/UL62471-5) FCC Part15 Class B, Canada: CAN/CSA (62368-1-14) ICES-003 Issue 7

Fan Noise

34dB (ECO mode Off), 31dB (ECO mode)

Lens Adjustment Functions

Manual focus, zoom

Supported Screen Size (Maximum)

30 - 300 in. / 0.76 - 7.62m

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

warning WARNING: This product can expose you to chemicals including Styrene and Formaldehyde (gas), which are known to the State of California to cause cancer, and Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Details

Display

Aspect Ratio

16x10

Maximum Resolution

HDMI1 (3840x2160 at60Hz)
HDMI2 (3840x2160 at30Hz)
Analog (1920x1080 at60Hz)

Native Resolution

WXGA 1280x800

Contrast Ratio (Typical)

2000:1

Synchronization Range

Horizontal (Analog/Digital)

15KHz, 24-100kHz (RGB: 24kHz or over)

Vertical

48-100, 120Hz

Signal Compatibility/Connectivity

SD/HD Video Signal Compatibility

480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K UHD

Macintosh Signal Compatibility

Yes

Input Terminals

RGB1 (analog): VGA 15-pin D-sub
RGB1 (digital): HDMI w/ HDCP (v2.2/1.4)
RGB2 (digital): HDMI w/ HDCP (v2.2/1.4)
Video 1: RCA
Audio 1: Stereo Mini Jack

PC Signal Compatibility

VGA, SVGA, XGA, SXGA, WUXGA

External Control

RS-232 (D-Sub 9pin), IR

Output Terminals

Audio: Stereo Mini Jack
Audio Out: Stereo Mini Jack

Power Consumption (Typical)

240W

Power Requirements

100-240V AC, 50/60 Hz

Input Current

Physical Specifications

Dimensions (WxHxD)

Product: 13.3 x 4.7 x 10.4 in. (337 x 119.3 x 265 mm)
Shipping: 19.5 x 15.2 x 7.7 in. (496 x 387 x 195 mm)

Weight

Net Weight: 9.7 lbs. (4.4 kg)
Shipping: 14.1 lbs. (6.4 kg)

Environmental Conditions

Operating Temperature

41-104°F / 5-40°C

Storage Temperature

14-140°F / -10-60°C

Operating Humidity

20 to 85% Humidity (Non-Condensing)

Storage Humidity

20 to 95% Humidity (Non-Condensing)

Optical

Display Technology

0.65" DLP

Light Output(Lumens)

4,300 Normal

Throw Ratio

1.5 - 2.35:1

Projector Angle

7.7 - 9.8° tele / 12.1 - 15.4° wide (at 60")

Keystone Correction

Horizontal (manual), Vertical (manual)

Lamp Type

20,000 hours normal / 30,000 hours eco

Screen Size (Diagonal)

30 - 300 in. / 0.76 - 7.62m

Projection Distance

3 - 50 ft. / 0.9 - 15.2 m

Lens

Zoom: 1.6x
Focus: Manual
F number, fnumber: F:2.5~3.26 /f=20.911~32.62mm

Mechanical

Installation Orientation

Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear

Regulations

USA: UL (UL60825-1/UL62471-5) FCC Part15 Class B, Canada: CAN/CSA (62368-1-14) ICES-003 Issue 7

Fan Noise

34dB (ECO mode Off), 31dB (ECO mode)

Lens Adjustment Functions

Manual focus, zoom

Supported Screen Size (Maximum)

30 - 300 in. / 0.76 - 7.62m
