Moxa
Industrial RS-422/485 Converter/Repeater

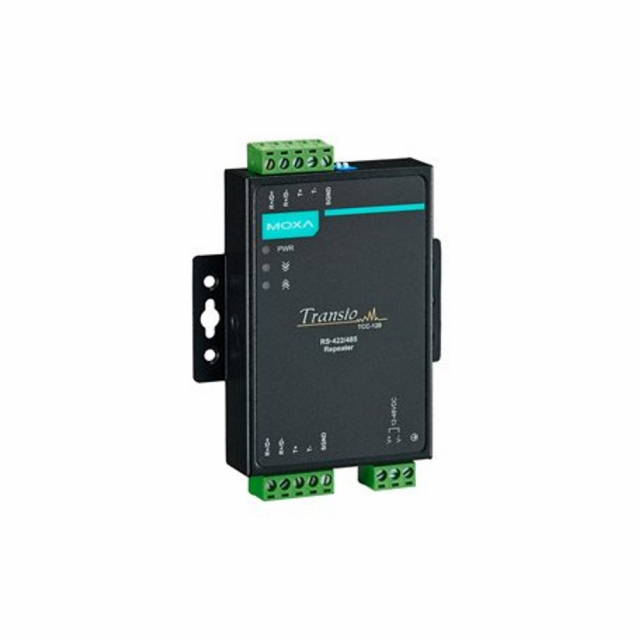

Moxa TCC-120 Industrial RS-422/485 Converter/Repeater

Brand: Moxa
Part #:
TCC-120
Condition:
Brand New
$197.90 /Each
Typically In Stock
Check availability
$197.90 /Each
Manufacturer warranty

Description

$197.90 /Each
Typically In Stock
Check availability

Technical details

Main features
  • Connector Terminal block
  • Weight 148 g (0.33 lb)
  • Dimensions 67 x 100.4 x 22 mm (2.64 x 3.93 x 0.87 in)
  • Input Voltage 12 to 48 VDC
  • Standards Telcordia (Bellcore), GB
  • Number of Ports 2
  • Installation DIN-rail mounting Wall mounting
  • Power Consumption 65 mA at 12 VDC
  • Housing Metal
  • Baud Rate 50 bps to 921.6 kbps (supports non-standard Baud Rates)
  • Operating Temperature -20 to 60°C (-4 to 140°F)
  • Power Connector Terminal block (for DC models)
  • IP Rating IP30
  • Vibration IEC 60068-2-6
  • EMC EN 55032/35
  • Safety UL 60950-1
  • Input Current 65 mA at 12 VDC
  • Time 1,949,025 hrs
  • EMI CISPR 32, FCC Part 15B Class A
  • Overload Current Protection Supported
  • Ambient Relative Humidity 5 to 95% (non-condensing)
  • Serial Standards RS-422 RS-485
  • RS-422 Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w Data+, Data-, GND
  • Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
  • Number of Power Inputs 1
  • Pull High/Low Resistor for RS-485 1 kilo-ohm, 150 kilo-ohms
  • Terminator for RS-485 N/A, 120 ohms, 120 kilo-ohms
  • RS-485 Data Direction Control ADDC (automatic data direction control)
  • Environmental Testing IEC 60068-2-1 IEC 60068-2-2xIEC 60068-2-3
