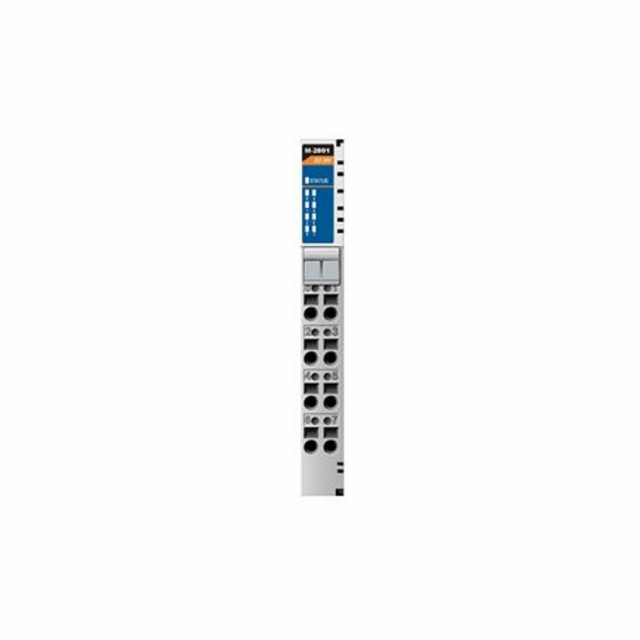

Moxa M-2801 Remote Sink I/O Module w/ 8 Digital Outputs

Brand: Moxa

Part #:

M-2801

Condition:

Brand New

Check availability

Manufacturer warranty

Description

Moxa, M-2801, Remote Sink I/O Module with 8 Digital Outputs, 24VDC

Features:

I/O expansion without a backplane
Active communication with MX-AOPC UA Server
Supports SNMP v1/v2c
Easy configuration with Modular ioAdmin utility
Friendly configuration via web browser
Simplifies I/O management with MXIO library for Windows or Linux

The ioLogik 4000 Series is suitable for remote monitoring and alarm systems, such as those used for water treatment systems, water supply systems, wastewater treatment systems, and power monitoring systems. These kinds of applications need more I/O points and a variety of I/O types, including temperature sensors, gas detectors, and water quality detectors, all of which can benefit from the versatile mixture of I/O features supported by the ioLogik 4000 Series.

Check availability

Technical details

Main features

Current Rating 500 mA per channel
Connector Spring-type Euroblock terminal
Weight Under 80 g
Dimensions 14.1 x 99 x 70 mm (0.56 x 3.90 x 2.76 in)
Standards Telcordia SR332
Installation DIN-rail mounting
I/O Mode DO
Power Consumption 60 mA at 5 VDC
Housing Plastic
Operating Temperature -10 to 60°C (14 to 140°F)
Vibration IEC 60068-2-6
Shock IEC 60068-2-27
EMC EN 55032/24, EN 61000-6-2/-6-4
Safety UL 508
Isolation 3k VDC or 2k Vrms
I/O type Source
Time 14,340,120 hrs
Wiring I/O cable, 14 to 28 AWG
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 4 kV Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV Signal: 1 kV IEC 61000-4-6
Ambient Relative Humidity 5 to 95% (non-condensing)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Green Product RoHS, CRoHS, WEEE
Digital Output Channels 8
