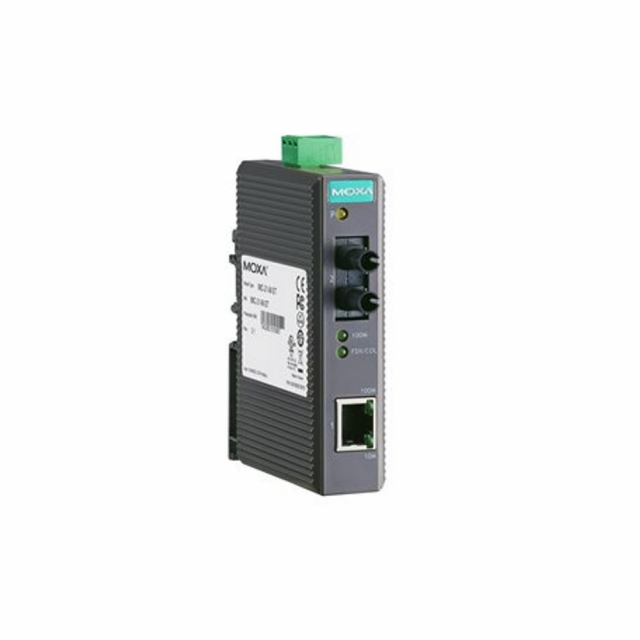

Moxa, IMC-21-M-ST, Industrial 10/100BaseT(X) to 100BaseFX Media Converter, Multi Mode, ST Connector

Features:

Multi-mode or single-mode, with SC or ST fiber connector
Link Fault Pass-Through (LFPT)
DIP switches to select FDX/HDX/10/100/Auto/Force

The IMC-21 industrial media converters are entry-level 10/100BaseT(X)-to-100BaseFX media converters designed to provide reliable and stable operation in harsh industrial environments. The converters are a cost-effective solution that run on either a 12 or 48 VDC power input and can operate reliably in temperatures ranging from -10 to 60°C. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The IMC-21 converters are easy to mount on a DIN rail or in distribution boxes.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Ethernet Interface

10/100BaseT(X) Ports (RJ45 Connector)

100BaseFX Ports (multi-mode ST connector)

Magnetic Isolation Protection

1.5 kV (built-in)

Power Parameters

Input Current

12 to 48 VDC, 0.271A (Max.)

Input Voltage

12 to 48 VDC

Overload Current Protection

Supported

Physical Characteristics

Housing

Plastic

IP Rating

IP30

Dimensions

25 x 109 x 97 mm (0.98 x 4.29 x 3.82 in)

Weight

125 g (0.27 lb)

Installation

DIN-rail mounting

Environmental Limits

Operating Temperature

-10 to 60°C (14 to 140°F)

Storage Temperature (package included)

-40 to 70°C (-40 to 158°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

EMC

EN 55032/24

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 4 kV
Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV
Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m
Signal: 3 V/m
IEC 61000-4-8 PFMF

Environmental Testing

IEC 60068-2-1
IEC 60068-2-2xIEC 60068-2-3

Safety

EN 60950-1, UL 60950-1

Vibration

IEC 60068-2-6

MTBF

Time

353,000 hrs

Standards

MIL-HDBK-217F

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Ethernet Interface

10/100BaseT(X) Ports (RJ45 Connector)

100BaseFX Ports (multi-mode ST connector)

Magnetic Isolation Protection

1.5 kV (built-in)

Power Parameters

Input Current

12 to 48 VDC, 0.271A (Max.)

Input Voltage

12 to 48 VDC

Overload Current Protection

Supported

Physical Characteristics

Housing

Plastic

IP Rating

IP30

Dimensions

25 x 109 x 97 mm (0.98 x 4.29 x 3.82 in)

Weight

125 g (0.27 lb)

Installation

DIN-rail mounting

Environmental Limits

Operating Temperature

-10 to 60°C (14 to 140°F)

Storage Temperature (package included)

-40 to 70°C (-40 to 158°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

EMC

EN 55032/24

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 4 kV
Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV
Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m
Signal: 3 V/m
IEC 61000-4-8 PFMF

Environmental Testing

IEC 60068-2-1
IEC 60068-2-2xIEC 60068-2-3

Safety

EN 60950-1, UL 60950-1

Vibration

IEC 60068-2-6

MTBF

Time

353,000 hrs

Standards

MIL-HDBK-217F
