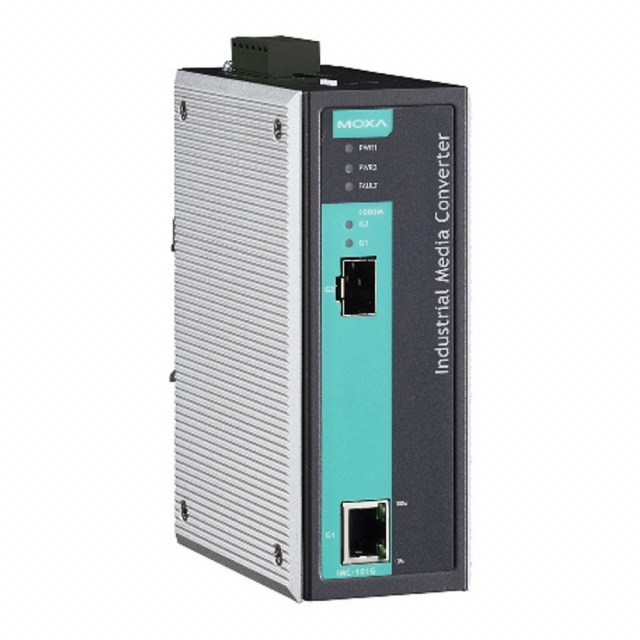

Moxa, IMC-101G, Industrial Gigabit Ethernet-to-Fiber Media Converter

Features:

10/100/1000BaseT(X) and 1000BaseSFP slot supported
Link Fault Pass-Through (LFPT)
Power failure, port break alarm by relay output
Redundant power inputs
-40 to 75°C operating temperature range (-T models)
Designed for hazardous locations (Class 1 Div. 2/Zone 2, IECEx)

The IMC-101G industrial Gigabit modular media converters are designed to provide reliable and stable 10/100/1000BaseT(X)-to-1000BaseSX/LX/LHX/ZX media conversion in harsh industrial environments. The IMC-101G's industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101G converter comes with a relay output warning alarm to help prevent damage and loss. All IMC-101G models are subjected to a 100% burn-in test, and they support a standard operating temperature range of 0 to 60°C and an extended operating temperature range of -40 to 75°C.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 Connector)

1000 Mbps fiber (SFP connector)

Magnetic Isolation Protection

1.5 kV (built-in)

Power Parameters

Input Current

200 mA at 12 to 45 VDC

Input Voltage

12 to 45 VDC

Overload Current Protection

Supported

Power Connector

Terminal block

Power Consumption

200 mA at 12 to 45 VDC

Physical Characteristics

Housing

Metal

Dimensions

53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)

Weight

630 g (1.39 lb)

Installation

DIN-rail mounting

Environmental Limits

Operating Temperature

0 to 60±
0C (32 to 140±
0F)

Storage Temperature (package included)

-40 to 85±

0C (-40 to 185±

0F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

EMC

EN 55032/24

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 6 kV
Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV
Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV
Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m
Signal: 10 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11

Environmental Testing

IEC 60068-2-1
IEC 60068-2-2
IEC 60068-2-3

Safety

EN 60950-1, UL 60950-1

Vibration

IEC 60068-2-6

Hazardous Locations

UL/cUL Class I Division 2 Groups A/B/C/D

MTBF

Time

500,540 hrs

Standards

Telcordia (Bellcore), GB

Product Details

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 Connector)

1000 Mbps fiber (SFP connector)

Magnetic Isolation Protection

1.5 kV (built-in)

Power Parameters

Input Current

200 mA at 12 to 45 VDC

Input Voltage

12 to 45 VDC

Overload Current Protection

Supported

Power Connector

Terminal block

Power Consumption

200 mA at 12 to 45 VDC

Physical Characteristics

Housing

Metal

Dimensions

53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)

Weight

630 g (1.39 lb)

Installation

DIN-rail mounting

Environmental Limits

Operating Temperature

0 to 60±
0C (32 to 140±
0F)

Storage Temperature (package included)

-40 to 85±

0C (-40 to 185±

0F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

EMC

EN 55032/24

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 6 kV
Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV
Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV
Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m
Signal: 10 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11

Environmental Testing

IEC 60068-2-1
IEC 60068-2-2
IEC 60068-2-3

Safety

EN 60950-1, UL 60950-1

Vibration

IEC 60068-2-6

Hazardous Locations

UL/cUL Class I Division 2 Groups A/B/C/D

MTBF

Time

500,540 hrs

Standards

Telcordia (Bellcore), GB

Note

Note: Please read description carefully. Do not base your order on the picture presented.
