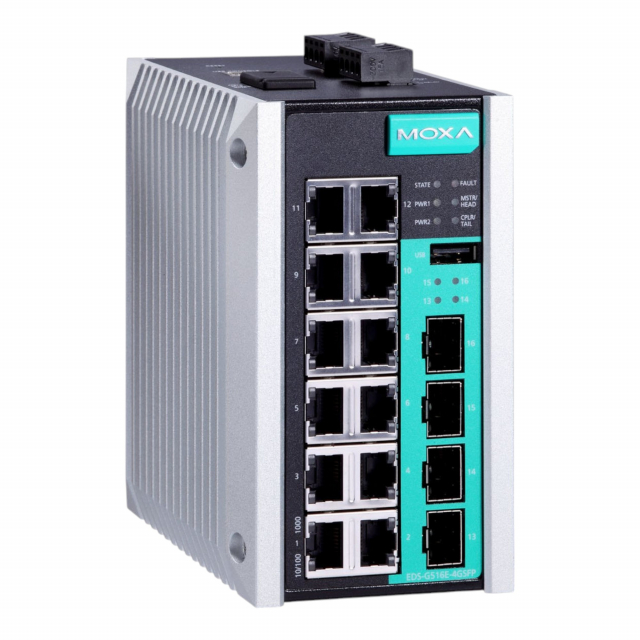

Moxa, EDS-G516E-4GSFP-T, 16-Port Full Gigabit Managed Ethernet Switch with 12 x 10/100/1000BaseT(X) Ports, 4 Gigabit SFP slots, -40 to 75°C Operating Temperature
Features:
- Up to 12-10/100/1000BaseT(X) ports and 4-100/1000BaseSFP ports
- Turbo Ring and Turbo Chain (recovery time
- RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802. 1X, MAC ACL, HTTPS, SSH, and sticky MAC addresses to enhance network security
- Security features based on IEC 62443
- EtherNet/IP, PROFINET, and Modbus TCP protocols supported for device management and monitoring
- Supports MXstudio for easy, visualized industrial network management
- V-ON™ ensures millisecond-level multicast data and video network recovery
Introduction
The EDS-G516E Series has 16 Gigabit Ethernet ports and up to 4 fiber-optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a full Gigabit backbone. Gigabit transmission increases b and width for higher performance and transfers large amounts of triple-play services across a network quickly.
Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase your system's reliability and improve your network backbone's availability. The EDS-G500E Series is designed specifically for communication demanding applications, such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable network backbone.
Additional Features and Benefits
- command line interface (CLI) for quickly configuring major managed functions
- DHCP 82 for IP address assignment with different policies
- Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring
- IGMP snooping and GMRP for filtering multicast traffic
- Port-based VLAN, IEEE 802. 1Q VLAN, and GVRP to ease network planning
- Supports the ABC-02-USB (Automatic Backup Configurator) for system configuration backup/restore and firmware upgrade
- QoS (IEEE 802. 1p/1Q and TOS/DiffServ) to increase determinism
For more information, please see
Data Sheet
