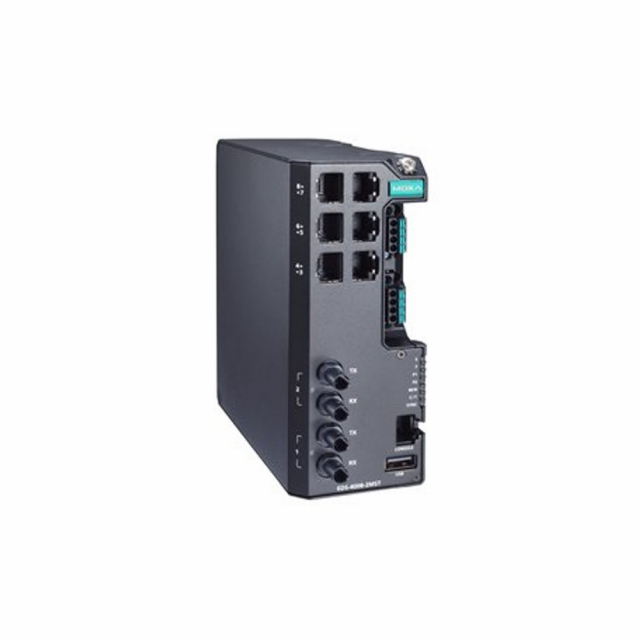

Moxa EDS-4008-2MST-LV Managed Ethernet Switch
Brand New
Manufacturer warranty Description
Moxa, EDS-4008-2MST-LV, Managed Ethernet Switch with 6x10/100Baset(X)-Ports and 2x100BaseFX Multi-Mode-Ports with ST Connectors, Dual Power Inputs 12/24/48 VDC
Features:
- Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
- Turbo Ring and Turbo Chain (recovery time<20 ms at 250 switches) If the port link speed is 1 Gigabit or higher, the recovery time is<50 ms. , and RSTP/STP for network redundancy
- Support for IEEE 802.3bt PoE for up to 90 W output per port
- Wide range of power input options for flexible deployment
- Compact and flexible housing design to fit into confined spaces
- Supports MXstudio for easy, visualized industrial network management
The EDS-4008 Series is a range of 8-port managed Fast Ethernet switches with the option for four 1 Gbps uplink ports or two 100M ST/SC fiber-optic ports. This Series also offers models with four 10/100BaseT(X) 802.3af (PoE), 802.3at (PoE+), and 802.3bt-compliant Ethernet PoE port options to connect high-bandwidth PoE devices.
Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-4008 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone.
The EDS-4008 Series is compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping customers meet the compliance requirements of secure industrial network design.
Technical details
- Weight 810 g (1.79 lb)
- Dimensions 55 x 140 x 132 mm (2.17 x 5.51 x 5.2 in)
- Input Voltage 12/24/48 VDC ; Redundant dual inputs
- Operating Voltage 9.6 to 60 VDC
- Standards Telcordia SR332, IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for flow control IEEE 802.3ad for Port Trunk with LACP IEEE 802.1Q for VLAN Tagging IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1X for authentication
- Buttons Reset button
- Installation DIN-rail mounting Wall mounting
- Filter GMRP GVRP GARP 802.1Q VLAN IGMP Snooping v1/v2/v3 IGMP Querier
- Connection 2 removable 4-contact terminal block(s)
- Housing Metal
- LED Indicators PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC
- Operating Temperature -10 to 60°C (14 to 140°F)
- Security Broadcast storm protection Rate Limit Trust access control Static Port Lock MAC Sticky HTTPS/SSL SSH RADIUS TACACS+ Access control list Login and Password Policy
- IP Rating IP40
- Vibration IEC 60068-2-6
- Shock IEC 60068-2-27
- EMC EN 55032/35 EN 61000-6-2/-6-4
- Safety UL 61010-2-201 EN 62368-1 (LVD)
- Input Current 12-48 VDC, 1.50-0.40 A or 24 VDC, 0.70 A
- Protocols IPv4/IPv6 TCP/IP UDP ICMP ARP RARP TFTP DNS NTP Client DHCP Server DHCP Client 802.1X QoS HTTPS HTTP Telnet SMTP SNMPv1/v2c/v3 RMON Syslog
- Management IPv4/IPv6 Flow control Back Pressure Flow Control DHCP Server/Client ARP RARP LLDP Port Mirror Linkup Delay SMTP SNMP Trap SNMP Inform SNMPv1/v2c/v3 RMON TFTP SFTP HTTP HTTPS Telnet Syslog Private MIB
- Hazardous Locations ATEX IECEx Class I Division 2
- Digital Inputs +13 to +30 V for state 1 -30 to +3 V for state 0 Maximum input current: 8 mA
- Mib P-BRIDGE MIB Q-BRIDGE MIB IEEE8021-SPANNING-TREE-MIB IEEE8021-PAE-MIB IEEE8023-LAG-MIB LLDP-EXT-DOT1-MIB LLDP-EXT-DOT3-MIB SNMPv2-MIB RMON MIB Groups 1, 2, 3, 9
- Note The EDS-4008 Series supports modular power supplies. The model names and power parameters are determined by the installed power module. For example: EDS-4008-T + PWR-100-LV = EDS-4008-LV-T EDS-4008-T + PWR-105-HV-I = EDS-4008-HV-T If you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-4008-LV-T; with the PWR-105-HV-I, refer to the specifications of the EDS-4008-HV-T.
- Time 1,015,718 hrs
- USB Connector USB Type A (Reserved)
- MAC table size 16 K
- Packet buffer size 1 Mb
- Console Port RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
- Priority Queues 4
- EMI CISPR 32, FCC Part 15B Class A
- Overload Current Protection Supported
- Reverse Polarity Protection Supported
- Traffic Control NEMA TS2
- EMS IEC 61000-4-2 ESD: Contact: 8 kV Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Railway EN 50121-4
- Ambient Relative Humidity 5 to 95% (non-condensing)
- Freefall IEC 60068-2-32
- Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
- 10/100BaseT(X) Ports (RJ45 Connector) 6 Auto-negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
- Maritime LR DNV ABS NK
- Time Management SNTP NTP Server/Client NTP Authentication
- 100BaseFX Ports (multi-mode ST connector) 2
- Alarm Contact Channels 1, Relay output with current carrying capacity of 1 A at 24 VDC
- Digital Input Channels 1
- Jumbo Frame Size 9.216 KB
- VLAN ID Range VID 1 to 4094
- IGMP Groups 512
- Redundancy Protocols STP RSTP Turbo Ring v2xTurbo Chain Ring Coupling Dual-Homing Link Aggregation MSTP
- Maximum Number of VLANs 256
- Industrial Cybersecurity IEC 62443-4-1 ; IEC 62443-4-2
- DIP Switches Turbo Ring, Master, Coupler, Reserve
- Power Consumption (Max.) 8.45 W
- Power Substation IEC 61850-3 ; IEEE 1613 Class 1
- Pre-installed Power Module PWR-100-LV
