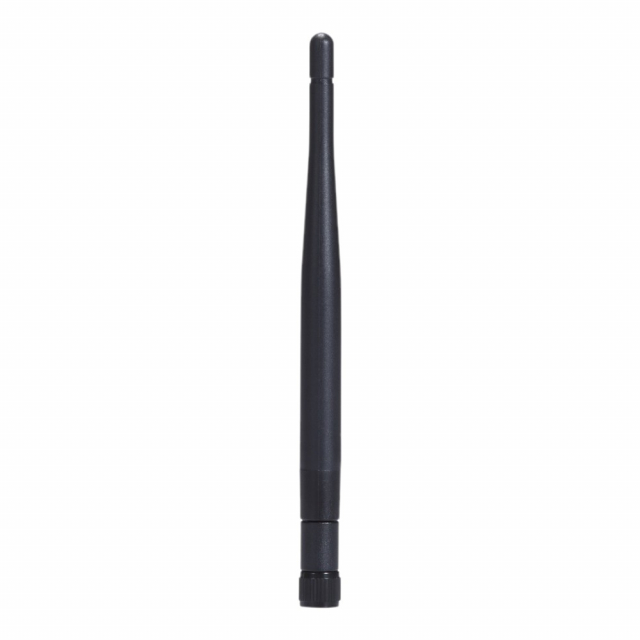

Moxa ANT-WDB-ARM-0202 2.4/5GHz Dual-Band Omni-Directional Antenna

  • Brand Moxa
  • Part # ANT-WDB-ARM-0202
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Moxa, ANT-WDB-ARM-0202, 2.4/5GHz Dual-Band Omni-Directional Antenna, 1.8/1.8 dBi, RP-SMA (Male) Connector

Features:

  • Small size for easy installation
  • Lightweight for portable deployment
  • Tilt and swivel design
  • Flexible installation
  • RP-SMA-type (male) connector

Introduction

The ANT-WDB-ARM-0202 is an omnidirectional lightweight compact dual-b and indoor antenna with RP-SMA (male) connectors. The antenna provides a gain of 2/2 dBi and is designed to operate in temperatures from -40 to 75°C.

Field Patterns

Frequency: 2. 4 GHz

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Reseller
Manufacturer Warranty

Technical Details

Reviews
Antenna Characteristics
Frequency2.4 to 2.5, 4.9 to 5.825 GHz
Antenna TypeOmni-directional
Typical Antenna Gain2/2 dBi
ConnectorRP-SMA (male)
Impedance50 ohms
PolarizationLinear
HPBW/Horizontal360°
V.S.W.R.2:1 max.
Power Handling1 W (max.)
Physical Characteristics
Weight9.65 g (0.02 lb)
Length136 mm (5.35 in)
Radome ColorBlack
Radome MaterialPlastic
InstallationStraight mount
Environmental Limits
Operating Temperature-40 to 75°C (-40 to 167°F)
Storage Temperature (package included)-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity5 to 95% (30°C, non-condensing)
Product Details
Antenna Characteristics
Frequency2.4 to 2.5, 4.9 to 5.825 GHz
Antenna TypeOmni-directional
Typical Antenna Gain2/2 dBi
ConnectorRP-SMA (male)
Impedance50 ohms
PolarizationLinear
HPBW/Horizontal360°
V.S.W.R.2:1 max.
Power Handling1 W (max.)
Physical Characteristics
Weight9.65 g (0.02 lb)
Length136 mm (5.35 in)
Radome ColorBlack
Radome MaterialPlastic
InstallationStraight mount
Environmental Limits
Operating Temperature-40 to 75°C (-40 to 167°F)
Storage Temperature (package included)-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity5 to 95% (30°C, non-condensing)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
