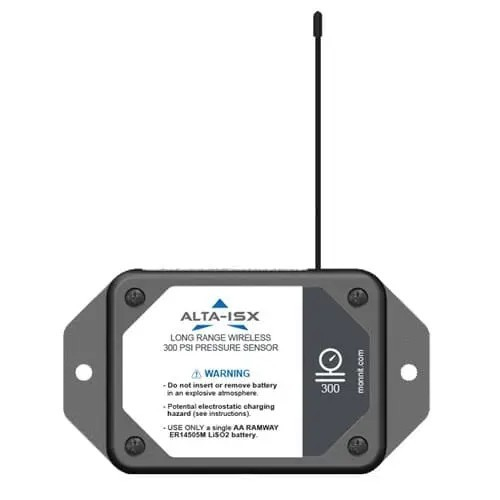

Monnit MNS2-9-W2S-PS-300 IECEx 300 PSIG Wireless Pressure Meter

Features:

• Transducers: 3000 PSIG
• Resolution: 0.1 PSI
• Accuracy:
  • Uncalibrated: ± 2% of reading + 1.05% FS
  • Calibrated: ± 0.5% of reading + 0.5% FS
• Configurable thresholds for critical condition monitoring
• Wireless range of 2,000+ feet through 18+ walls
• Frequency-Hopping Spread Spectrum (FHSS)
• Best-in-class interference immunity
• Best-in-class power management for longer battery life
• Encrypt-RF Security (Diffie-Hellman Key Exchange + Advanced Encryption Standard (AES)-128 Cipher Block Chaining (CBC) for sensor data messages)
• Sensor logs 2000 to 4000 readings if the gateway connection is lost (non-volatile flash, persists through power cycling):
  • 10-minute Heartbeats = ~ 22 days
  • 2-hour Heartbeats = ~ 266 days
• Automatic over-the-air updates to sensor firmware (future-proof)

Applications:

• Compressors/compressed air lines
• Water supply lines
• Pumping systems
• Irrigation system pressure
• Industrial process monitoring
• Trash compaction equipment
• Hydraulic systems

The ALTA Wireless Pressure Meter uses an industrial-grade pressure transducer to measure pressure on a user-configurable time interval or Heartbeat. On every Heartbeat, the pressure transducer is energized and a proportional analog voltage is converted to a digital pressure measurement.

The ALTA Pressure Meter can be calibrated for improved accuracy. Also, remember to remove the pressure from the sensor when performing maintenance on this device.
