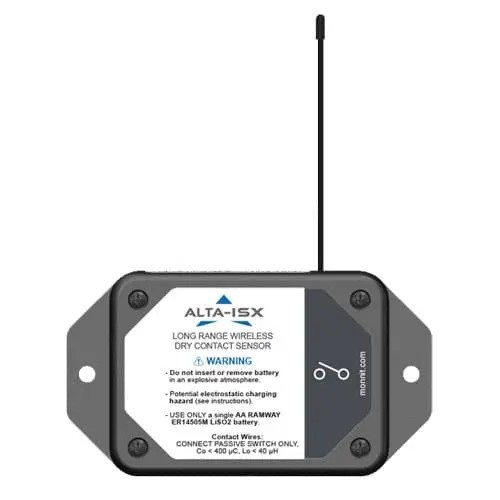

Monnit MNS2-9-W2S-DC-CF-L01 IECEx Wireless Dry Contact Sensor

Features:

• Cable terminations: bare-wire
• Can integrate with switches
• Wireless range of 2,000+ feet through 18+ walls
• Frequency-Hopping Spread Spectrum (FHSS)
• Best-in-class interference immunity
• Best-in-class power management for longer battery life
• Encrypt-RF Security (Diffie-Hellman Key Exchange + Advanced Encryption Standard (AES)-128 Cipher Block Chaining (CBC) for sensor data messages)
• Sensor logs 2000 to 4000 readings if the gateway connection is lost (non-volatile flash, persists through power cycling):
  • 10-minute Heartbeats = ~ 22 days
  • 2-hour Heartbeats = ~ 266 days
• Automatic over-the-air updates to sensor firmware (future-proof)

Applications:

• Barn door monitoring
• Freezer/cooler door monitoring
• Forklift seat switches
• Button or switch integration
• Production line tracking

The ALTA Wireless Dry Contact Sensor detects when there is contact between the two wired end points. It can easily be integrated into existing switches or contact plates. When the sensor detects contact between the two end points a wireless communication is immediately sent to the gateway. The gateway will immediately attempt to securely send the message to iMonnit, or other approved data services.

The sensor can be configured to detect both closed and open loops, alerting if contact is made or broken and on state changes.
