Monnit
Wireless 5-Input Dry Contact Sensor

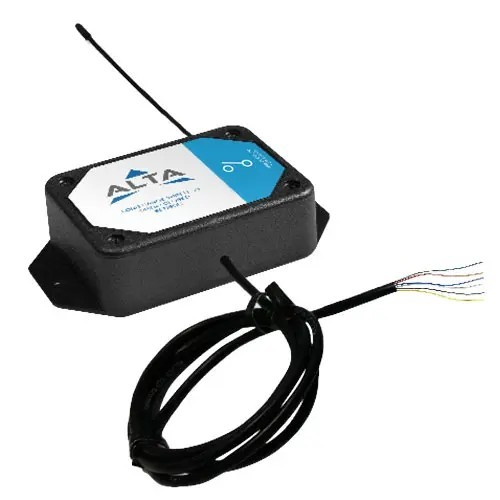

Monnit MNS2-9-W2-DC-05-L03 Wireless 5-Input Dry Contact Sensor

Brand: Monnit
Part #:
MNS2-9-W2-DC-05-L03
Condition:
Brand New
$164.80 /Each
Typically In Stock
Check availability
$164.80 /Each
Manufacturer warranty

Description

$164.80 /Each
Typically In Stock
Check availability

Technical details

Main features
  • Weight 3.2 oz (91 g) with 0.3 m (1.0') lead 3.7 oz. (105 g) with 0.9 m (3.0') lead
  • Battery 2x 1.5V AA Alkaline, 1500 mAh (standard) 2x 1.5V AA Lithium, 3000 mAh (optional)
  • Lead Cable length: 0.9 m (3 ft) Wire count: 6-conductor (black/white/yellow/red/blue/green) Ground Wire: Black Input 1 Wire: White Input 2 Wire: Yellow Input 3 Wire: Red Input 4 Wire: Blue Input 5 Wire: Green
  • Wireless Data logging: Sensor logs 2000 to 4000 readings if gateway connection is lost (non-volatile flash, persists through power cycling) Wireless protocol: ALTA Proprietary Frequency-Hopping Spread Spectrum (FHSS) Wireless transmission power (EIRP): 50 mW (900MHz), 25 mW (868 MHz), 10 mW (433 MHz) Wireless range: 2,000+ ft. through 18+ walls with the ALTA XL Gateway Security: Encrypt-RF (256-bit key exchange and AES-128 CTR)
  • Voltage Rating 300 V Max
  • Operating Temperature Range -18°C to 55°C (0°F to 130°F) - AA Alkaline Batteries -25°C to 60°C (-13°F to 140°F) - AA Lithium L91 Batteries 0°C to 40°C (32°F to 104°F) - US 5V Power Supply 10°C to 40°C (50°F to 104°F) - International 5V Power Supply
  • Battery Life 10+ years expected
  • Temperature Rating -25°C to 80°C (-13°F to 176°F)
  • Input Impedance 2.5 MΩ
  • General Battery voltage range: 2.0 to 3.8 VDC Operating altitude (non-pressurized): -15.2 to 1,982 m (-50 to 6,500 ft) Storage altitude (non-pressurized environments): -15.2 to 3,048 m (-50 to 10,000 ft) Operating humidity: 5 to 85% RH (non-condensing)
  • Dielectric Strength 1500 V RMS
  • Insulation PVC, 0.38mm (0.015")
  • Jacket PVC (black)
  • Wire Gauge 28 AWG
  • Shield Aluminum; Copper Tinned
  • Overall Diameter 5.4 mm (0.212")
  • Conductor Material Stranded Copper
  • Wireless Antenna Type 1/4-wave, 20 gauge wire whip, 3.5" (900/868MHz), 7" (433MHz)
  • Ratings / Approvals UL AWM STYLE 2464, cUL AWM I/IEC RoHS/Reach Compliant
  • Maximum medium impedance 900.0 kΩ
