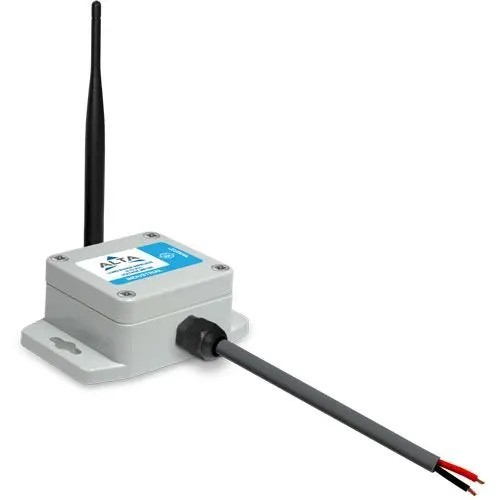

Buy Monnit MNS2-9-IN-VM-010, Industrial Wireless 0-10 VDC Voltage Meter

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

MNS2-9-IN-VM-010 Includes Only:

Wireless Sensor Mounting Hardware
3V Industrial Battery (Pre-Installed)
SMA Antenna

Features:

Resolution: 1 mV
Accuracy:
- Uncalibrated: ± 2.0% of reading ± 0.002 VDC
- Calibrated: ± 0.5% of reading ± 0.002 VDC
Configurable thresholds for critical condition monitoring
Wireless range of 2,000+ feet through 18+ walls
Frequency-Hopping Spread Spectrum (FHSS)
Best-in-class interference immunity
Best-in-class power management for longer battery life
Encrypt-RF Security (Diffie-Hellman Key Exchange + Advanced Encryption Standard (AES)-128 Cipher Block Chaining (CBC) for sensor data messages)
Sensor logs 2000 to 4000 readings if the gateway connection is lost (non-volatile flash, persists through power cycling):
- 10-minute Heartbeats = ~ 22 days
- 2-hour Heartbeats = ~ 266 days
Automatic over-the-air updates to sensor firmware (future-proof)

Applications:

Battery health
Voltage measurement
Transducer measurement
Machinery
Electrical motors

The ALTA Wireless 5 and 10 VDC Voltage Meter measures the single-ended DC voltage across its two leads based on a user-configurable time interval or Heartbeat. On every Heartbeat, the sensor converts the analog voltage signal to a digital voltage measurement.

The ALTA 5 and 10 VDC Voltage Meter can be calibrated for improved accuracy. Also, remember to remove any active voltages from the measurement leads when replacing batteries or performing other maintenance.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Meter Range	0 to 10 VDC
Input impedance	247 kOhm
Max rated input	20 volts
Uncalibrated accuracy	± 2.0% of reading ± 0.002 VDC
Calibrated accuracy	± 0.5% of reading ± 0.002 VDC
Resolution	1 mV
Wire Lead Cable length	0.3 m (1')
Wire count	2-conductor (red/black)
Wire gauge	22 AWG
Conductor material	Stranded Copper 7/30
Insulation	PVC, 0.010"
Shield	No
Jacket	PVC (black)
Overall diameter	3.56 mm (0.14")
Ratings / Approvals	NEC (UL) Type CM, UL AWM Style 2464, CSA AWM FT4, RoHS Compliant
Temperature Rating	-20° to 60°C (-4° to 140°F)
Voltage Rating	300 V Max
Dielectric Strength	1500 V RMS
Wireless Data logging	Sensor logs 2000 to 4000 readings if gateway connection is lost (non-volatile flash, persists through power cycling): 10-minute Heartbeats = ~22 days, 2-hour Heartbeats = ~266 days
Wireless protocol	ALTA Proprietary Frequency-Hopping Spread Spectrum (FHSS)
Wireless transmission power (EIRP)	50 mW (900MHz), 25 mW (868 MHz), 10 mW (433 MHz)
Wireless range	2,000+ ft. through 18+ walls with the ALTA XL Gateway
Security	Encrypt-RF (256-bit key exchange and AES-128 CTR)
Battery voltage range	2.0 to 3.8 VDC
Operating altitude (non-pressurized environments)	-15.2 to 1,982 m (-50 to 6,500 ft)
Storage altitude (non-pressurized environments)	-15.2 to 3,048 m (-50 to 10,000 ft)
Operating humidity	5 to 85% RH (non-condensing)
Battery	1x 3.6V AA Lithium Thionyl Chloride, 1500mAh, pre-installed
Battery Life	10+ years expected
Operating Temperature Range (non-leaded measurement range)	-40°C to 85°C (-40°F to 185°F)
Wireless Antenna Type	1/2-wave waterproof dipole with RP-SMA connector and swivel neck; dBi of 3.0 (900/868MHz) or 2.5 (433 MHz); length of 8.27" (210mm) (900/868MHz) or 7.68" (195mm) (433 MHz); diameter at thickest point of 0.55" (14mm)
Weight	4.7 oz. (133 g) with 0.3 m (1') lead
Enclosure Rating	IP-65 (dust-proof and waterproof but not submersible)
Additional Enclosure Rating	NEMA 1, 2, 4, 4x, 12, and 13 rated, sealed, and weatherproof
UL Rating	UL Listed to UL508-4x specifications (File E194432)

Product Details

Meter Range	0 to 10 VDC
Input impedance	247 kOhm
Max rated input	20 volts
Uncalibrated accuracy	± 2.0% of reading ± 0.002 VDC
Calibrated accuracy	± 0.5% of reading ± 0.002 VDC
Resolution	1 mV
Wire Lead Cable length	0.3 m (1')
Wire count	2-conductor (red/black)
Wire gauge	22 AWG
Conductor material	Stranded Copper 7/30
Insulation	PVC, 0.010"
Shield	No
Jacket	PVC (black)
Overall diameter	3.56 mm (0.14")
Ratings / Approvals	NEC (UL) Type CM, UL AWM Style 2464, CSA AWM FT4, RoHS Compliant
Temperature Rating	-20° to 60°C (-4° to 140°F)
Voltage Rating	300 V Max
Dielectric Strength	1500 V RMS
Wireless Data logging	Sensor logs 2000 to 4000 readings if gateway connection is lost (non-volatile flash, persists through power cycling): 10-minute Heartbeats = ~22 days, 2-hour Heartbeats = ~266 days
Wireless protocol	ALTA Proprietary Frequency-Hopping Spread Spectrum (FHSS)
Wireless transmission power (EIRP)	50 mW (900MHz), 25 mW (868 MHz), 10 mW (433 MHz)
Wireless range	2,000+ ft. through 18+ walls with the ALTA XL Gateway
Security	Encrypt-RF (256-bit key exchange and AES-128 CTR)
Battery voltage range	2.0 to 3.8 VDC
Operating altitude (non-pressurized environments)	-15.2 to 1,982 m (-50 to 6,500 ft)
Storage altitude (non-pressurized environments)	-15.2 to 3,048 m (-50 to 10,000 ft)
Operating humidity	5 to 85% RH (non-condensing)
Battery	1x 3.6V AA Lithium Thionyl Chloride, 1500mAh, pre-installed
Battery Life	10+ years expected
Operating Temperature Range (non-leaded measurement range)	-40°C to 85°C (-40°F to 185°F)
Wireless Antenna Type	1/2-wave waterproof dipole with RP-SMA connector and swivel neck; dBi of 3.0 (900/868MHz) or 2.5 (433 MHz); length of 8.27" (210mm) (900/868MHz) or 7.68" (195mm) (433 MHz); diameter at thickest point of 0.55" (14mm)
Weight	4.7 oz. (133 g) with 0.3 m (1') lead
Enclosure Rating	IP-65 (dust-proof and waterproof but not submersible)
Additional Enclosure Rating	NEMA 1, 2, 4, 4x, 12, and 13 rated, sealed, and weatherproof
UL Rating	UL Listed to UL508-4x specifications (File E194432)
