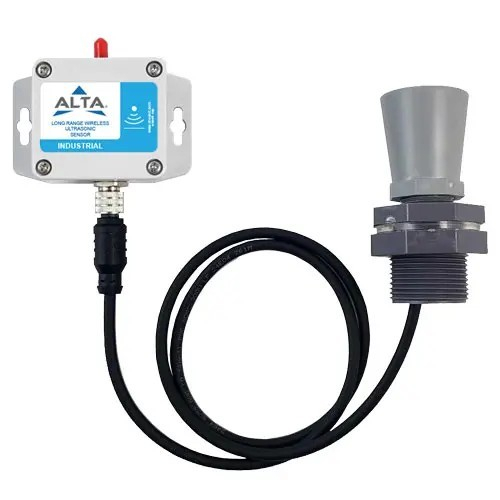

Buy Monnit MNS2-9-IN-US-NPT-L03, Industrial Wireless Ultrasonic Sensor

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Mounting Type:: Mounting Type: NPT Top Mount

MNS2-9-IN-US-NPT-L03 Includes Only:

Wireless Sensor Mounting Hardware
3V Industrial Battery (Pre-Installed)
SMA Antenna

Features:

Measures distance between the sensor and objects in its path
Resolution: 1 centimeter
Accuracy:
- Commercial: ± 5% FS
- Industrial: ± 1% FS
Auto-calibration algorithms allow sensor to adapt to variable environmental conditions
Configurable thresholds for critical condition monitoring
Industrial sensor comes standard with a detachable lead and two options for mounting hardware
Wireless range of 2,000+ feet through 18+ walls
Frequency-Hopping Spread Spectrum (FHSS)
Best-in-class interference immunity
Best-in-class power management for longer battery life
Encrypt-RF Security (Diffie-Hellman Key Exchange + Advanced Encryption Standard (AES)-128 Cipher Block Chaining (CBC) for sensor data messages)
Sensor logs 2000 to 4000 readings if the gateway connection is lost (non-volatile flash, persists through power cycling):
- 10-minute Heartbeats = ~ 22 days
- 2-hour Heartbeats = ~ 266 days
Automatic over-the-air updates to sensor firmware (future-proof)

Applications:

Liquid Level Detection
Object/Vehicle Detection
Inventory Status (based on distance measurement)

The ALTA Wireless Ultrasonic Sensor sends a high-frequency sound pulse to measure distance based on a user-configurable time interval or Heartbeat. On every Heartbeat, the sensor produces a high-frequency sound pulse. The sensor uses the speed of sound and the time difference between sending and receiving the sound pulse to determine the distance to an object.

WARNING: Tanks with liquid in them must be vented. Otherwise, condensation will accumulate on the lens and render readings inaccurate.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Sensor resolution	1 cm
Minimum Measurement Distance	10 cm
Maximum Measurement Distance	400 cm
Sensor Accuracy	5% FS (can be calibrated for further accuracy)
Industrial Sensor resolution	1 cm
Minimum Measurement Distance (Industrial)	20 cm
Maximum Measurement Distance (Industrial)	750 cm
Sensor Accuracy (Industrial)	+/- 1% full scale
Detachable Connector	M12, 5-pin, circular, waterproof
Mounting Installation Hole (Thru Hole Mount)	1 5/8" or 42 mm +/- 2 mm
Mounting Panel Thickness (Thru Hole Mount)	3/4" or 20 mm or less
Mounting Hardware Overall (Thru Hole Mount)	2 1/4" or 57 mm
Mounting Installation Hole (Threaded Hole Mount)	2" Female NPT
Mounting Panel Thickness (Threaded Hole Mount)	1" or 25 mm or less
Mounting Hardware Overall (Threaded Hole Mount)	1.45" or 37mm
Wireless Data logging	Sensor logs 2000 to 4000 readings if gateway connection is lost (non-volatile flash, persists through power cycling): 10-minute Heartbeats = ~22 days, 2-hour Heartbeats = ~266 days
Wireless protocol	ALTA Proprietary Frequency-Hopping Spread Spectrum (FHSS)
Wireless transmission power (EIRP)	50 mW (900MHz), 25 mW (868 MHz), 10 mW (433 MHz)
Wireless range	2,000+ ft. through 18+ walls with the ALTA XL Gateway
Security	Encrypt-RF (256-bit key exchange and AES-128 CTR)
Battery voltage range	2.0 to 3.8 VDC
Operating altitude (non-pressurized environments)	-15.2 to 1,982 m (-50 to 6,500 ft)
Storage altitude (non-pressurized environments)	-15.2 to 3,048 m (-50 to 10,000 ft)
Operating humidity	5 to 85% RH (non-condensing)
Battery	1x 3.6V AA Lithium Thionyl Chloride, 1500mAh, pre-installed
Battery Life	4+ years expected
Operating Temperature Range	-25°C to 80°C (-13°F to 176°F)
Minimum Measurement Distance	20 cm
Maximum Measurement Distance	750 cm
Sensor Accuracy	+/- 1% full scale
Lead Length	3 feet (30.48 cm)
Wireless Antenna Type	1/2-wave waterproof dipole with RP-SMA connector and swivel neck; dBi of 3.0 (900/868MHz) or 2.5 (433 MHz); length of 8.27" (210mm) (900/868MHz) or 7.68" (195mm) (433 MHz); diameter at thickest point of 0.55" (14mm)
Weight	13.6 ounces (380g)
Enclosure Rating	NEMA 1, 2, 4, 4x, 12, and 13 rated, sealed, and weatherproof
UL Rating	UL Listed to UL508-4x specifications (File E194432)

Product Details

Sensor resolution	1 cm
Minimum Measurement Distance	10 cm
Maximum Measurement Distance	400 cm
Sensor Accuracy	5% FS (can be calibrated for further accuracy)
Industrial Sensor resolution	1 cm
Minimum Measurement Distance (Industrial)	20 cm
Maximum Measurement Distance (Industrial)	750 cm
Sensor Accuracy (Industrial)	+/- 1% full scale
Detachable Connector	M12, 5-pin, circular, waterproof
Mounting Installation Hole (Thru Hole Mount)	1 5/8" or 42 mm +/- 2 mm
Mounting Panel Thickness (Thru Hole Mount)	3/4" or 20 mm or less
Mounting Hardware Overall (Thru Hole Mount)	2 1/4" or 57 mm
Mounting Installation Hole (Threaded Hole Mount)	2" Female NPT
Mounting Panel Thickness (Threaded Hole Mount)	1" or 25 mm or less
Mounting Hardware Overall (Threaded Hole Mount)	1.45" or 37mm
Wireless Data logging	Sensor logs 2000 to 4000 readings if gateway connection is lost (non-volatile flash, persists through power cycling): 10-minute Heartbeats = ~22 days, 2-hour Heartbeats = ~266 days
Wireless protocol	ALTA Proprietary Frequency-Hopping Spread Spectrum (FHSS)
Wireless transmission power (EIRP)	50 mW (900MHz), 25 mW (868 MHz), 10 mW (433 MHz)
Wireless range	2,000+ ft. through 18+ walls with the ALTA XL Gateway
Security	Encrypt-RF (256-bit key exchange and AES-128 CTR)
Battery voltage range	2.0 to 3.8 VDC
Operating altitude (non-pressurized environments)	-15.2 to 1,982 m (-50 to 6,500 ft)
Storage altitude (non-pressurized environments)	-15.2 to 3,048 m (-50 to 10,000 ft)
Operating humidity	5 to 85% RH (non-condensing)
Battery	1x 3.6V AA Lithium Thionyl Chloride, 1500mAh, pre-installed
Battery Life	4+ years expected
Operating Temperature Range	-25°C to 80°C (-13°F to 176°F)
Minimum Measurement Distance	20 cm
Maximum Measurement Distance	750 cm
Sensor Accuracy	+/- 1% full scale
Lead Length	3 feet (30.48 cm)
Wireless Antenna Type	1/2-wave waterproof dipole with RP-SMA connector and swivel neck; dBi of 3.0 (900/868MHz) or 2.5 (433 MHz); length of 8.27" (210mm) (900/868MHz) or 7.68" (195mm) (433 MHz); diameter at thickest point of 0.55" (14mm)
Weight	13.6 ounces (380g)
Enclosure Rating	NEMA 1, 2, 4, 4x, 12, and 13 rated, sealed, and weatherproof
UL Rating	UL Listed to UL508-4x specifications (File E194432)
