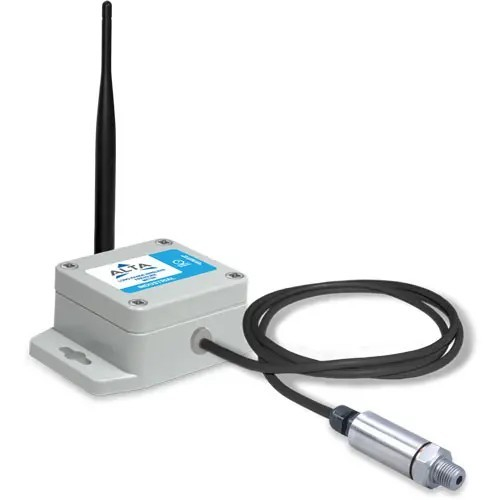

Buy Monnit MNS2-9-IN-PS-3000, 3000 PSIG Industrial Wireless Pressure Meter

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

PSIG:: PSIG: 3000

MNS2-9-IN-PS-3000 Includes Only:

Wireless Sensor Mounting Hardware
3V Industrial Battery (Pre-Installed)
SMA Antenna

Features:

Resolution: 0.1 PSI
Accuracy:
- Uncalibrated: ± 2% of reading + 1.05% FS
- Calibrated: ± 0.5% of reading + 0.5% FS
Configurable thresholds for critical condition monitoring
Wireless range of 2,000+ feet through 18+ walls
Frequency-Hopping Spread Spectrum (FHSS)
Best-in-class interference immunity
Best-in-class power management for longer battery life
Encrypt-RF Security (Diffie-Hellman Key Exchange + Advanced Encryption Standard (AES)-128 Cipher Block Chaining (CBC) for sensor data messages)
Sensor logs 2000 to 4000 readings if the gateway connection is lost (non-volatile flash, persists through power cycling):
- 10-minute Heartbeats = ~ 22 days
- 2-hour Heartbeats = ~ 266 days
Automatic over-the-air updates to sensor firmware (future-proof)
Free iMonnit Basic Online Wireless Sensor Monitoring and Notification System to configure sensors, view data, and set alerts to be sent via SMS text and email

Applications:

Compressors/compressed air lines
Water supply lines
Pumping systems
Irrigation system pressure
Industrial process monitoring
Trash compaction equipment
Hydraulic systems

The ALTA Wireless Pressure Meter uses an industrial-grade pressure transducer to measure pressure on a user-configurable time interval or Heartbeat. On every Heartbeat, the pressure transducer is energized and a proportional analog voltage is converted to a digital pressure measurement.

The ALTA Pressure Meter can be calibrated for improved accuracy. Also, remember to remove the pressure from the sensor when performing maintenance on this device.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Measurement range	3000 PSIG
Operating temperature	-18°C to 79°C (0°F to 175°F)
Thermal effect on reading	±0.02% FS/°F (includes zero and span)
Media	Gas, Liquid, or Vapor
Response time	300 msec
Stability	1.0% FS/year (Typ.)
Wire length	0.91 m (3 ft)
Resolution	0.1 PSI
Pressure measurement accuracy	± (2% of reading + 1.05% FS)
User-calibrated pressure accuracy	± (0.5% of reading + 0.5% FS)
Process connection	¼" NPT-Male standard
Process connection material	Wetted type 316 stainless steel
Wireless Data logging	Sensor logs 2000 to 4000 readings if gateway connection is lost (non-volatile flash, persists through power cycling): 10-minute Heartbeats = ~22 days, 2-hour Heartbeats = ~266 days
Wireless protocol	ALTA Proprietary Frequency-Hopping Spread Spectrum (FHSS)
Wireless transmission power (EIRP)	50 mW (900MHz), 25 mW (868 MHz), 10 mW (433 MHz)
Wireless range	2,000+ ft. through 18+ walls with the ALTA XL Gateway
Security	Encrypt-RF (256-bit key exchange and AES-128 CTR)
Battery voltage range	2.0 to 3.8 VDC
Operating altitude (non-pressurized environments)	-15.2 to 1,982 m (-50 to 6,500 ft)
Storage altitude (non-pressurized environments)	-15.2 to 3,048 m (-50 to 10,000 ft)
Operating humidity	5 to 85% RH (non-condensing)
Battery	1x 3.6V AA Lithium Thionyl Chloride, 1500mAh, pre-installed
Battery Life	5+ years expected
Operating Temperature Range	-25°C to 80°C (-13°F to 176°F)
Operating Humidity	5 to 95% RH (non-condensing)
Wireless Antenna Type	1/2-wave waterproof dipole with RP-SMA connector and swivel neck; dBi of 3.0 (900/868MHz) or 2.5 (433 MHz); length of 8.27" (210mm) (900/868MHz) or 7.68" (195mm) (433 MHz); diameter at thickest point of 0.55" (14mm)
Weight	13.3 oz. (377 g)
Enclosure Rating	NEMA 1, 2, 4, 4x, 12, and 13 rated, sealed, and weatherproof
UL Rating	UL Listed to UL508-4x specifications (File E194432)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Measurement range	3000 PSIG
Operating temperature	-18°C to 79°C (0°F to 175°F)
Thermal effect on reading	±0.02% FS/°F (includes zero and span)
Media	Gas, Liquid, or Vapor
Response time	300 msec
Stability	1.0% FS/year (Typ.)
Wire length	0.91 m (3 ft)
Resolution	0.1 PSI
Pressure measurement accuracy	± (2% of reading + 1.05% FS)
User-calibrated pressure accuracy	± (0.5% of reading + 0.5% FS)
Process connection	¼" NPT-Male standard
Process connection material	Wetted type 316 stainless steel
Wireless Data logging	Sensor logs 2000 to 4000 readings if gateway connection is lost (non-volatile flash, persists through power cycling): 10-minute Heartbeats = ~22 days, 2-hour Heartbeats = ~266 days
Wireless protocol	ALTA Proprietary Frequency-Hopping Spread Spectrum (FHSS)
Wireless transmission power (EIRP)	50 mW (900MHz), 25 mW (868 MHz), 10 mW (433 MHz)
Wireless range	2,000+ ft. through 18+ walls with the ALTA XL Gateway
Security	Encrypt-RF (256-bit key exchange and AES-128 CTR)
Battery voltage range	2.0 to 3.8 VDC
Operating altitude (non-pressurized environments)	-15.2 to 1,982 m (-50 to 6,500 ft)
Storage altitude (non-pressurized environments)	-15.2 to 3,048 m (-50 to 10,000 ft)
Operating humidity	5 to 85% RH (non-condensing)
Battery	1x 3.6V AA Lithium Thionyl Chloride, 1500mAh, pre-installed
Battery Life	5+ years expected
Operating Temperature Range	-25°C to 80°C (-13°F to 176°F)
Operating Humidity	5 to 95% RH (non-condensing)
Wireless Antenna Type	1/2-wave waterproof dipole with RP-SMA connector and swivel neck; dBi of 3.0 (900/868MHz) or 2.5 (433 MHz); length of 8.27" (210mm) (900/868MHz) or 7.68" (195mm) (433 MHz); diameter at thickest point of 0.55" (14mm)
Weight	13.3 oz. (377 g)
Enclosure Rating	NEMA 1, 2, 4, 4x, 12, and 13 rated, sealed, and weatherproof
UL Rating	UL Listed to UL508-4x specifications (File E194432)
