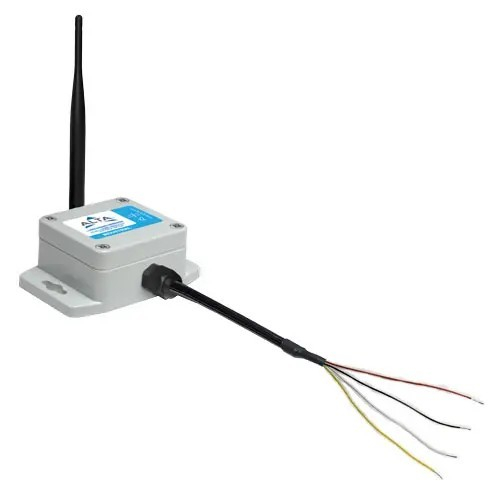

Monnit MNS2-9-IN-PC-02 Industrial Wireless Pulse Counters Dual Input
Brand:
Monnit
Part #:
MNS2-9-IN-PC-02
Condition:
Brand New
Brand New $235.80 /Each
Manufacturer warranty Description
MNS2-9-IN-PC-02 Includes Only:
- Wireless Sensor Mounting Hardware
- 3V Industrial Battery (Pre-Installed)
- SMA Antenna
Features:
- Counts:
- Pulses from two devices simultaneously
- Number of pulses in a given time frame or aggregates pulses in an ongoing accumulation
- Passive (open/closed switch) or active (up to +80 VDC) pulses
- Positive edge, negative edge, or both edges of a pulse
- Filters:
- None Ultra-fast counting up to 1600 Hz
- Weak Fast counting up to 80 Hz
- Medium Normal counting up to 20 Hz
- Strong Slow counting up to 4 Hz
- Wireless range of 2,000+ feet through 18+ walls
- Frequency-Hopping Spread Spectrum (FHSS)
- Best-in-class interference immunity
- Best-in-class power management for longer battery life
- Encrypt-RF Security (Diffie-Hellman Key Exchange + Advanced Encryption Standard (AES)-128 Cipher Block Chaining (CBC) for sensor data messages)
- Sensor logs 2000 to 4000 readings if the gateway connection is lost (non-volatile flash, persists through power cycling):
- 10-minute Heartbeats = ~ 22 days
- 2-hour Heartbeats = ~ 266 days
- Automatic over-the-air updates to sensor firmware (future-proof)
- Free iMonnit Basic Online Wireless Sensor Monitoring and Notification System to configure sensors, view data, and send alerts via SMS text, email, and voice call
Applications:
- Water, gas, and airflow meters
- Door access counter
- Turnstile counting
- Forklift seat switches
- Button or switch integration
- Production line tracking
The ALTA Wireless Dual Pulse Counter counts active or passive pulses generated by common industry systems. The counter includes four software configurable low-pass filter settings (None, Weak, Medium, Strong). The sensor will record the number of pulses counted over a user-configurable time interval or Heartbeat.
The ALTA Pulse Counter can be configured to report urgently if the number of pulses counted in one Heartbeat exceeds a user-specified threshold.
Technical details
Main features
- Weight 4.7 oz. (133 g)
- Input Voltage 0 to +80 Volts DC
- Battery 1x 3.6V AA Lithium Thionyl Chloride, 1500mAh, pre-installed
- Compatibility Open collector NPN switches (passive), Mechanical switches (passive), 0-80V driven source (active)
- Enclosure Rating IP-65 (dust-proof and waterproof but not submersible)
- Voltage Rating 300 V Max
- Security Encrypt-RF (256-bit key exchange and AES-128 CTR)
- Operating Temperature Range -40°C to 85°C (-40°F to 185°F) (non-leaded measurement range)
- Operating Humidity 5 to 85% RH (non-condensing)
- Battery Life 10+ years expected
- Temperature Rating -25°C to 80°C (-13°F to 176°F)
- Input Impedance > 4.7 MOhm +/- 1%
- Dielectric Strength 1500 V RMS
- Wireless Range 2,000+ ft. through 18+ walls with the ALTA XL Gateway
- UL Rating UL Listed to UL508-4x specifications (File E194432)
- Insulation PVC, 0.29mm (0.010")
- Jacket PVC (black)
- Cable construction High impedance (4-wire), 3 ft length
- Wire Gauge 26 AWG
- Shield No
- Overall Diameter 4.25 ± 0.2 mm (0.17" ± 0.007")
- Conductor Material Stranded Copper 7/34
- Wireless Antenna Type 1/2-wave waterproof dipole with RP-SMA connector and swivel neck; dBi of 3.0 (900/868MHz) or 2.5 (433 MHz); length of 8.27" (210mm) (900/868MHz) or 7.68" (195mm) (433 MHz); diameter at thickest point of 0.55" (14mm)
- Wireless Protocol ALTA Proprietary Frequency-Hopping Spread Spectrum (FHSS)
- Wireless Transmission Power (EIRP) 50 mW (900MHz), 25 mW (868 MHz), 10 mW (433 MHz)
- Battery Voltage Range 2.0 to 3.8 VDC
- Operating Altitude (non-pressurized environments) -15.2 to 1,982 m (-50 to 6,500 ft)
- Storage Altitude (non-pressurized environments) -15.2 to 3,048 m (-50 to 10,000 ft)
- Ratings / Approvals UL AWM STYLE 2464, cUL AWM I/II A 80°C 300V FT1 LF
- Lead Cable length 0.9 m (3 ft)
- Wire count 4-conductor (black/red/white/yellow)
- Wireless Data logging Sensor logs 2000 to 4000 readings if gateway connection is lost (non-volatile flash, persists through power cycling): 10-minute Heartbeats = ~22 days, 2-hour Heartbeats = ~266 days
- Maximum count 18,446,744,073,709,551,615 (64-bit number)
- Counter operation Positive and/or negative edge pulses
- Filter Max Pulse Rate None: 120 KHz, Weak: 80 Hz, Medium: 20 Hz, Strong: 4 Hz
- Min Pulse Width None: 0.0083 ms, Weak: 200 ms, Medium: 40 ms, Strong: 10 ms
- Wiring Diagram 1: Red - Pulse Count 1 Input, 2: White - Pulse Count 2 Input, G: Black - Ground/Common, G: Yellow - Ground/Common
- Other Enclosure Ratings NEMA 1, 2, 4, 4x, 12, and 13 rated, sealed, and weatherproof
