Buy Monnit MNS2-9-IN-LS-PAR, Industrial Wireless PAR Light Meter

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

MNS2-9-IN-LS-PAR Includes Only:

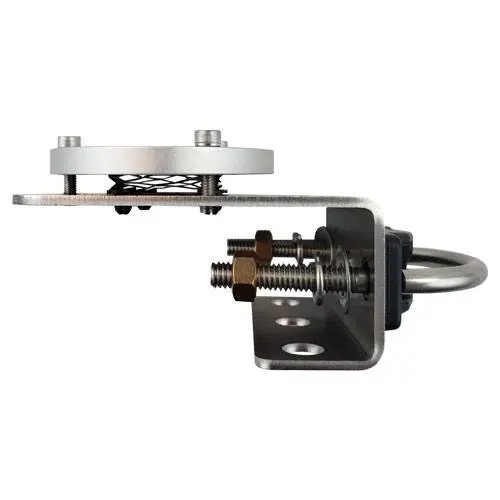

Wireless Sensor Mounting Hardware
3V Industrial Battery (Pre-Installed)
SMA Antenna

Features:

Measures Photosynthetic Photon Flux Density (PPFD) in µmol/m²/s
Range: 0 to 4000 µmol/m²/s
Resolution: 0.1 µmol/m²/s
Accuracy: +/- 6%
Produces a Daily Light Integral (DLI)
Configurable thresholds for critical condition monitoring
Wireless range of 2,000+ feet through 18+ walls
Frequency-Hopping Spread Spectrum (FHSS)
Best-in-class interference immunity
Best-in-class power management for longer battery life
Encrypt-RF Security (Diffie-Hellman Key Exchange + Advanced Encryption Standard (AES)-128 Cipher Block Chaining (CBC) for sensor data messages)
Sensor logs 2000 to 4000 readings if the gateway connection is lost (non-volatile flash, persists through power cycling):
- 10-minute Heartbeats = ~ 22 days
- 2-hour Heartbeats = ~ 266 days
Automatic over-the-air updates to sensor firmware (future-proof)
Free iMonnit Basic Online Wireless Sensor Monitoring and Notification System to configure sensors, view data, and send alerts via SMS text, email, and voice call

Applications:

Grow houses
Greenhouses
Growth chambers
Outdoor growing environments
Aquaculture
Aquariums

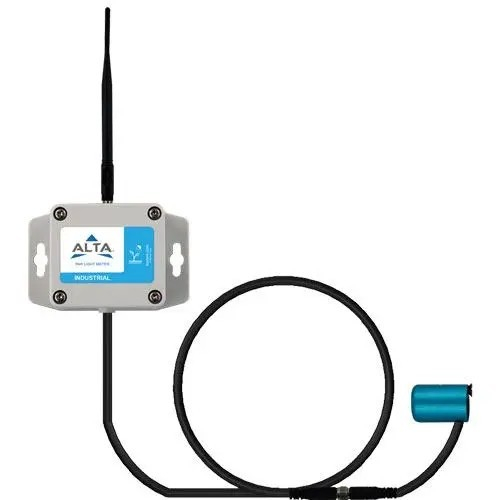

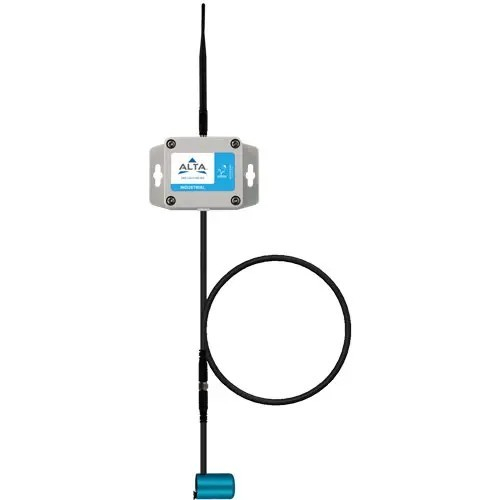

The ALTA Wireless PAR Light Meter uses a blue-enhanced silicon photodiode to measure the specific wavelengths of light that plants need for photosynthesis based on a user-configurable time interval or Heartbeat. The PAR Light Meter measures Photosynthetic Photon Flux Density (PPFD) in µmol/m2/s. PPFD is the amount of PAR light (photons) that arrive at the plant's surface each second. The PPFD measurement is integrated throughout the day to produce the Daily Light Integral (DLI) in mol/m2/day.

The PAR Light Meter resets the DLI accumulation at a customer-configurable time of day.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

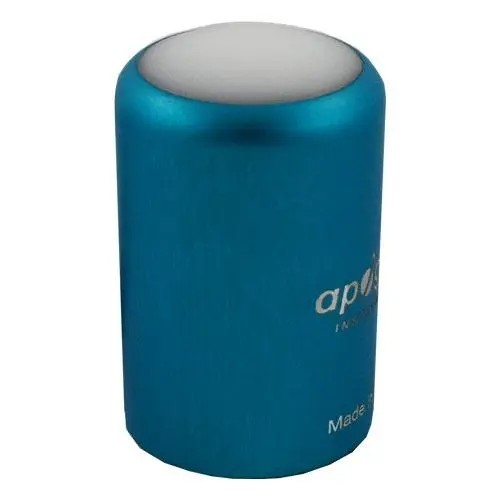

Element Type	SQ-500-SS from Apogee Instruments
Range	0.0 to 4000.0 µmol/m²/s
Resolution	0.1 µmol/m²/s
Dimensions	Diameter: 0.944 in. (24 mm), Height: 1.457 in. (37 mm)
Response Time	Less than 1 ms
Repeatability	0.5%
Overall Accuracy	+/- 6%
Long-term Drift	Less than 2% per year
Field of View	180°
Spectral Range	389 to 692 nm +/- 5 nm
Azimuth and Tilt Error	Less than 0.5% each
Temperature Response	-0.11 +/- 0.04% per °C
Operating Environment	-40°C to 70°C (-40°F to 158°F); 0 to 100% relative humidity (RH); can be submerged in water up to depths of 30 m (Cable and Sensor Element)
Cable General Composition	5 m of shielded, twisted-pair wire with TPR jacket (high water resistance, high UV stability, flexibility in cold conditions)
Connector	IP-68 marine-grade stainless-steel keyed M8 6-pin connector
Wireless Data logging	Sensor logs 2000 to 4000 readings if gateway connection is lost (non-volatile flash, persists through power cycling): 10-minute Heartbeats = ~22 days, 2-hour Heartbeats = ~266 days
Wireless protocol	ALTA Proprietary Frequency-Hopping Spread Spectrum (FHSS)
Wireless transmission power (EIRP)	50 mW (900MHz), 25 mW (868 MHz), 10 mW (433 MHz)
Wireless range	2,000+ ft. through 18+ walls with the ALTA XL Gateway
Security	Encrypt-RF (256-bit key exchange and AES-128 CTR)
Battery voltage range	2.0 to 3.8 VDC
Operating altitude (non-pressurized environments)	-15.2 to 1,982 m (-50 to 6,500 ft)
Storage altitude (non-pressurized environments)	-15.2 to 3,048 m (-50 to 10,000 ft)
Operating humidity	5 to 85% RH (non-condensing)
Battery	1x 3.6V AA Lithium Thionyl Chloride, 1500mAh, pre-installed
Battery Life	10+ years expected
Operating Temperature Range	-25°C to 80°C (-13°F to 176°F)
Wireless Antenna Type	1/2-wave waterproof dipole with RP-SMA connector and swivel neck; dBi of 3.0 (900/868MHz) or 2.5 (433 MHz); length of 8.27" (210mm) (900/868MHz) or 7.68" (195mm) (433 MHz); diameter at thickest point of 0.55" (14mm)
Weight	9.4 ounces (266g)
Enclosure Rating	NEMA 1, 2, 4, 4x, 12, and 13 rated, sealed, and weatherproof
UL Rating	UL Listed to UL508-4x specifications (File E194432)

Product Details

Element Type	SQ-500-SS from Apogee Instruments
Range	0.0 to 4000.0 µmol/m²/s
Resolution	0.1 µmol/m²/s
Dimensions	Diameter: 0.944 in. (24 mm), Height: 1.457 in. (37 mm)
Response Time	Less than 1 ms
Repeatability	0.5%
Overall Accuracy	+/- 6%
Long-term Drift	Less than 2% per year
Field of View	180°
Spectral Range	389 to 692 nm +/- 5 nm
Azimuth and Tilt Error	Less than 0.5% each
Temperature Response	-0.11 +/- 0.04% per °C
Operating Environment	-40°C to 70°C (-40°F to 158°F); 0 to 100% relative humidity (RH); can be submerged in water up to depths of 30 m (Cable and Sensor Element)
Cable General Composition	5 m of shielded, twisted-pair wire with TPR jacket (high water resistance, high UV stability, flexibility in cold conditions)
Connector	IP-68 marine-grade stainless-steel keyed M8 6-pin connector
Wireless Data logging	Sensor logs 2000 to 4000 readings if gateway connection is lost (non-volatile flash, persists through power cycling): 10-minute Heartbeats = ~22 days, 2-hour Heartbeats = ~266 days
Wireless protocol	ALTA Proprietary Frequency-Hopping Spread Spectrum (FHSS)
Wireless transmission power (EIRP)	50 mW (900MHz), 25 mW (868 MHz), 10 mW (433 MHz)
Wireless range	2,000+ ft. through 18+ walls with the ALTA XL Gateway
Security	Encrypt-RF (256-bit key exchange and AES-128 CTR)
Battery voltage range	2.0 to 3.8 VDC
Operating altitude (non-pressurized environments)	-15.2 to 1,982 m (-50 to 6,500 ft)
Storage altitude (non-pressurized environments)	-15.2 to 3,048 m (-50 to 10,000 ft)
Operating humidity	5 to 85% RH (non-condensing)
Battery	1x 3.6V AA Lithium Thionyl Chloride, 1500mAh, pre-installed
Battery Life	10+ years expected
Operating Temperature Range	-25°C to 80°C (-13°F to 176°F)
Wireless Antenna Type	1/2-wave waterproof dipole with RP-SMA connector and swivel neck; dBi of 3.0 (900/868MHz) or 2.5 (433 MHz); length of 8.27" (210mm) (900/868MHz) or 7.68" (195mm) (433 MHz); diameter at thickest point of 0.55" (14mm)
Weight	9.4 ounces (266g)
Enclosure Rating	NEMA 1, 2, 4, 4x, 12, and 13 rated, sealed, and weatherproof
UL Rating	UL Listed to UL508-4x specifications (File E194432)
