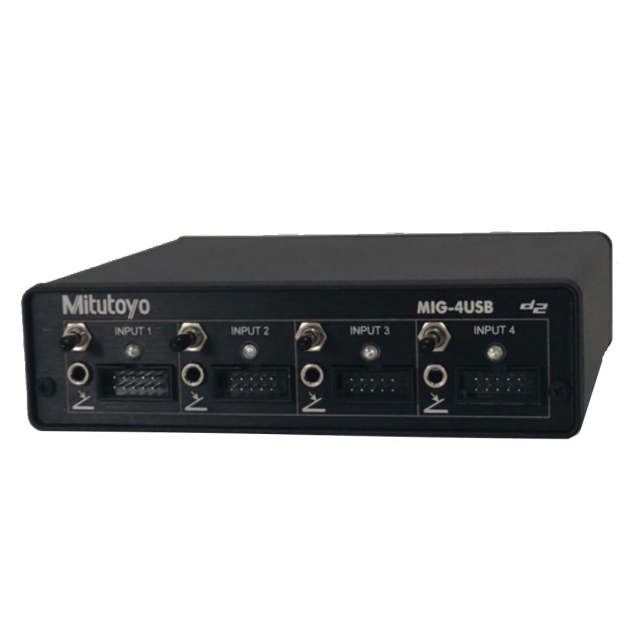

Mitutoyo 64AAB639 USB Multiplexer MIG-4USB, V6.0 W/D2 Compat, 4 Input

Features:

• The ability to transfer data from the gage into any software such as Excel or MeasurLink
• Simplifying multi-gage inspection stations to a single USB connection reduces the number of connections required to the PC
• Supports keyboard emulation (HID), Virtual COM Port (VCP) and RS232 connections
• MAX, MIN and TIR collection modes for a single gage or across all connected gages
• Data input from Digimatic, d2, and RS-232 devices
• Timed and continuous data streaming
• Map ports to specified spreadsheet columns or rows for organized data collection
• Date and timestamp for spreadsheets

This model has 4 inputs. SPC Cables are used to connect gages to the Multiplexer. A USB connection to the PC allows data to be transferred by keyboard emulation (HID) or Virtual COM Port (VCP).

Multiplexers can be connected together to form a system that supports up to 99 gages. Data from single or multiple ports can be sent by the multiplexer, PC, or an external trigger.
