Mitutoyo 264-622 U-Wave IP67 Type Transmitter for Micrometer

Uses with: Micrometer, Version: IP67 Type
  • Brand Mitutoyo
  • Part # 264-622
  • Model # U-Wave
  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Uses with:
Uses with: Micrometer
Version:
Version: IP67 Type

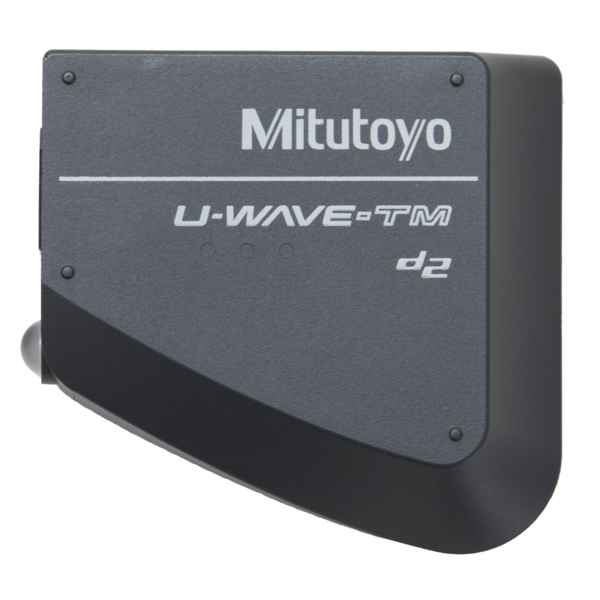

Mitutoyo, 264-622, U-Wave Wireless IP67 Type Transmitter for Micrometer

Features:

  • User-friendly interface allows data to be loaded into any software product that accepts keyboard input, such as Microsoft Excel™ or Notepad

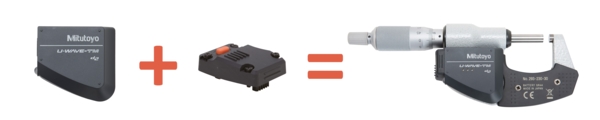

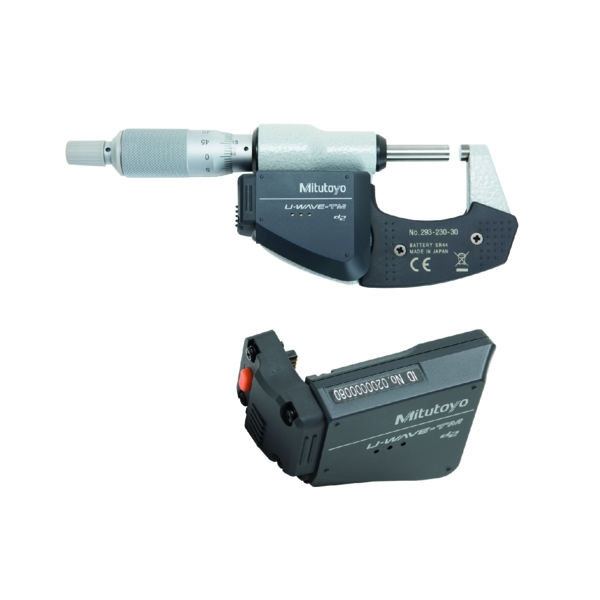

The U-WAVE transmitter installs onto any Mitutoyo digital measuring tool and uses the Mitutoyo Digimatic protocol to easily transfer data measurements wirelessly to a PC. The use of U-WAVE eliminates the need for long, cumbersome data cables for much better measurement efficiency.


See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Reseller
Manufacturer Warranty

Technical Details

Optional Accessories
Reviews
Wireless Communication ProtocolProprietary (2,4 GHz by original specification based on IEEE 802.15.4)
Modulation MethodDS-SS (Direct Sequence Spread Spectrum)
Measuring Instruments100, 150, 200, 300 mm caliper
RemarksIP67
Data Reception IndicationLED (green, red, orange)
Communication DistanceApprox. 20 m (within visible range)
Communication Speed Kbps250
Power SupplyBattery CR2032 x 1 pcs.
Communication with Measuring ToolDigimatic (6 digits), Digimatic 2 (8 digits) automatic identification
Communication Frequency2,4 GHz band (2,405-2,475 GHz, 15 channels, 5 MHz interval)
Transmission Output2,5 mW (4 dBm) or below
OS CompatibilityWindows® 2000 Professional (≥SP4), Windows® XP Professional (≥SP2), Windows® XP Home Edition (≥SP2), Windows Vista®, Windows® 7 (32bit, 64bit), Windows® 8, 8. 1, 10 (32bit, 64bit), 11
Battery LifeApprox. 400000 transmissions
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Wireless Communication ProtocolProprietary (2,4 GHz by original specification based on IEEE 802.15.4)
Modulation MethodDS-SS (Direct Sequence Spread Spectrum)
Measuring Instruments100, 150, 200, 300 mm caliper
RemarksIP67
Data Reception IndicationLED (green, red, orange)
Communication DistanceApprox. 20 m (within visible range)
Communication Speed Kbps250
Power SupplyBattery CR2032 x 1 pcs.
Communication with Measuring ToolDigimatic (6 digits), Digimatic 2 (8 digits) automatic identification
Communication Frequency2,4 GHz band (2,405-2,475 GHz, 15 channels, 5 MHz interval)
Transmission Output2,5 mW (4 dBm) or below
OS CompatibilityWindows® 2000 Professional (≥SP4), Windows® XP Professional (≥SP2), Windows® XP Home Edition (≥SP2), Windows Vista®, Windows® 7 (32bit, 64bit), Windows® 8, 8. 1, 10 (32bit, 64bit), 11
Battery LifeApprox. 400000 transmissions
