Mitutoyo 197-101 Micrometer Head with Non-Rotating Stop
Brand:
Mitutoyo
Part #:
197-101
Condition:
Brand New
Brand New $534.00 /Each
$600.00 You save $66.00 11%
Notification
This product will be drop-shipped directly from the manufacturer. We will provide you with the manufacturer's lead time once advised.
Manufacturer warranty Description

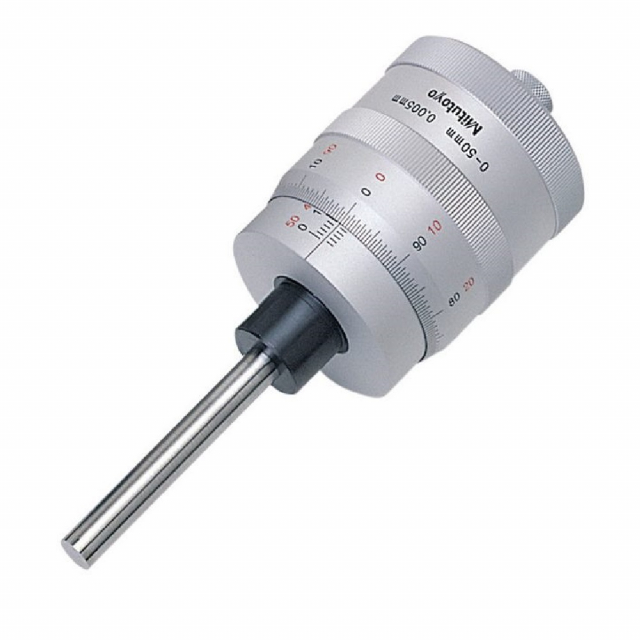

Mitutoyo, 197-101, Micrometer Head with Non-Rotating Ratchet Stop
Features:
- Flat spindle faces are constructed of carbide and have lapped surfaces for more accurate measurements over time
- The scale surface uses white anodized aluminum that resists corrosion
The larger diameter on the Mitutoyo fast-feeding micrometer head with 1mm feed per revolution allows for quick, highly accurate work stage adjustments. The floating thimble is easy to zero set at any spindle location, and its large size makes for easy reading and use. The spindle is constructed of hardened steel and has a flat, carbide measuring face which is lapped for lasting precision.

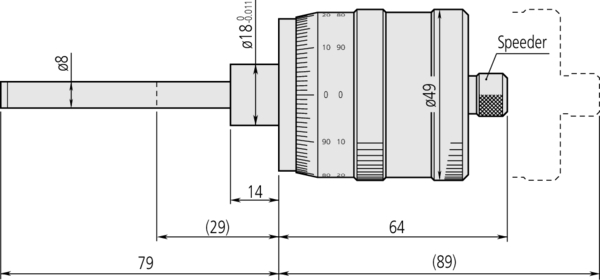

Dimensions:
Technical details
Main features
- Range 0 - 50 mm
- Graduation 0.005 mm
- Mass 300 g
- Special Features Bidirectional graduation
- Stem Plain
- Digital/Analog Analog
- Inch-Metric Metric
- Maximum Permissible Error J MPE ±5 µm
- Stem Dia. 18 mm
- Spindle Pitch 1 mm
- Spindle End Flat
