Buy Meg-Alert GP7000-D, 2% Digital 3" Megohm Meter 500 VDC Scale

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Features:

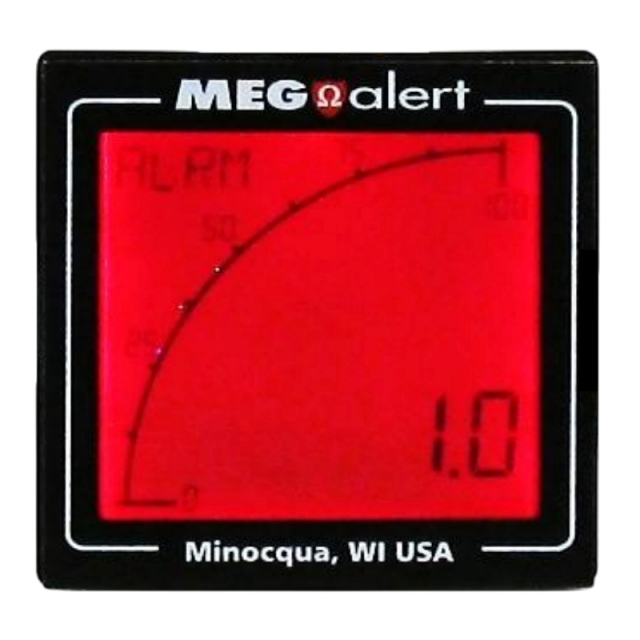

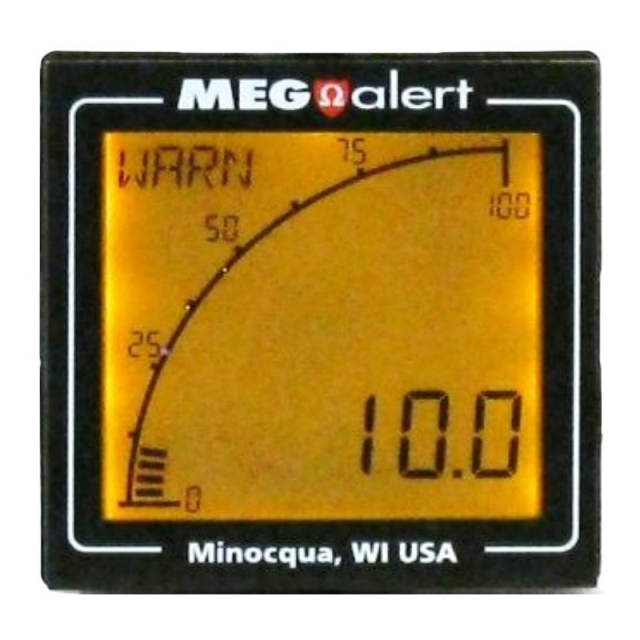

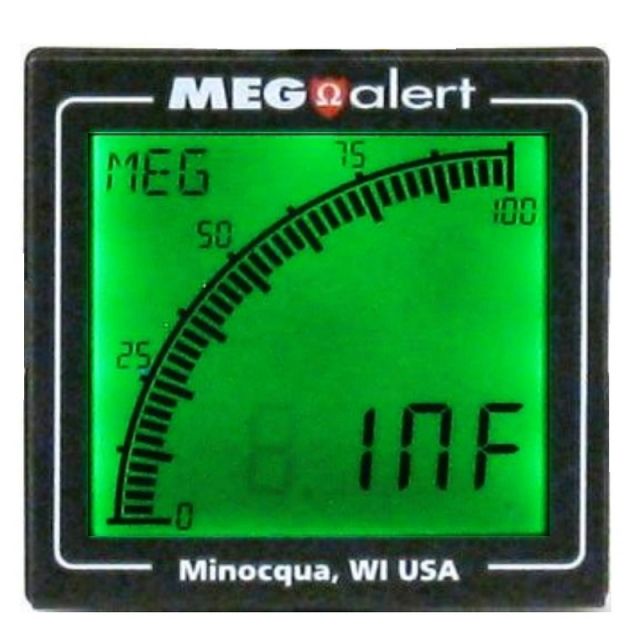

GP7000-D 2% Digital Megohm Meter with 3" color changing dial.

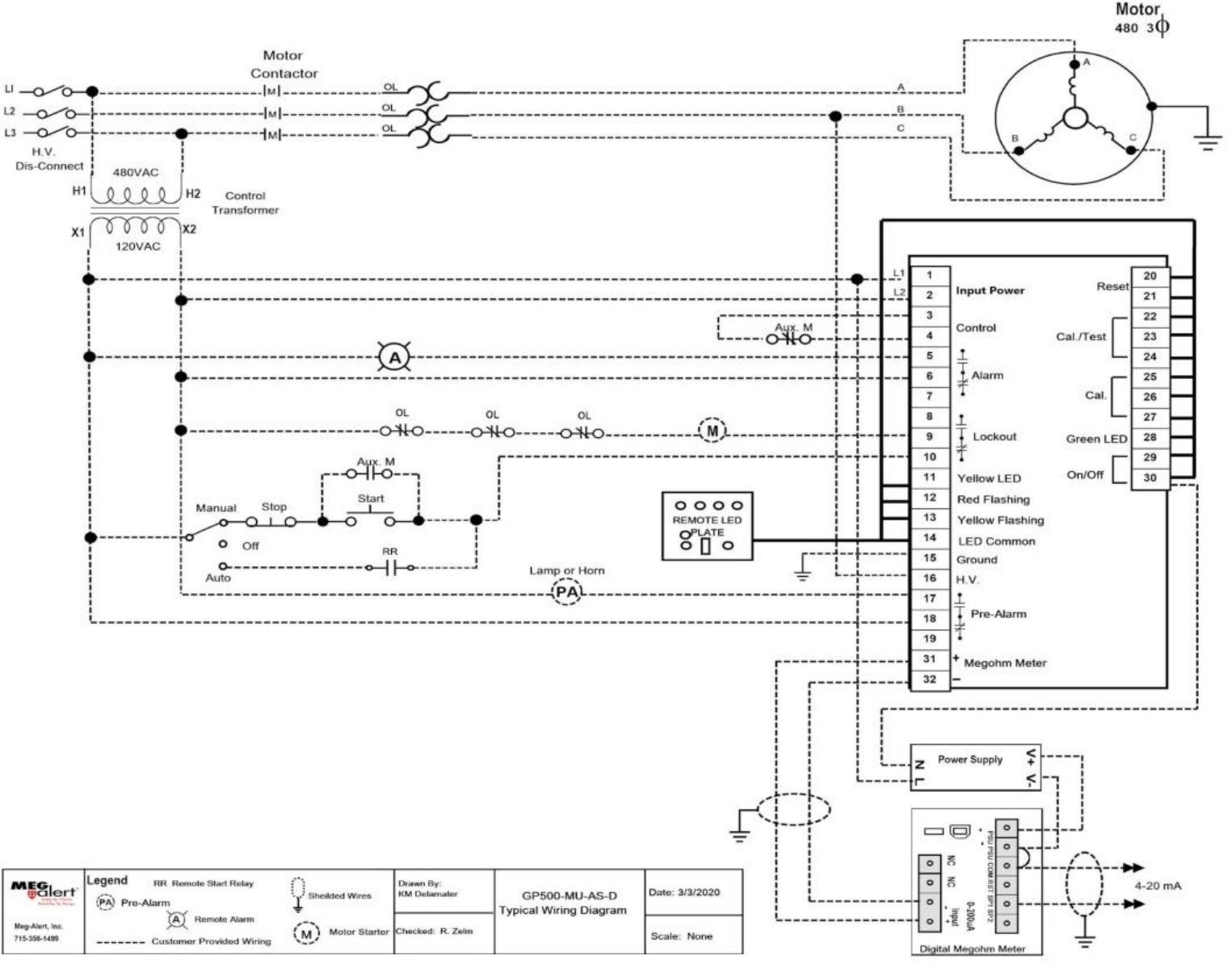

Wiring Diagram

For more information, please see pdf file Data Sheet

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Input Current	0-200 uA
Accuracy	0.1% of output or 5 uA, whichever is greater
Environmental
Temperature Operating	-10° to +60°C
Temperature Storage	10° to +70°C
IP rating (from the front)	IP65
Power Supply
Nominal Input	(AC or DC): 12 – 24 VAC/VDC
Max Power	1.6 W
Display
Number of Digits	4
Digit Height	12mm [0.47"]
Number of Message Characters	4
Message Character Height	6mm [0.236"]
Backlit Colors	Green, Yellow, Red
LCD Display	Positive or Negative
Outputs	Analog Output: 1 – 20 mA

Certification	UL cUL, CEtt

Input Current	0-200 uA
Accuracy	0.1% of output or 5 uA, whichever is greater
Environmental
Temperature Operating	-10° to +60°C
Temperature Storage	10° to +70°C
IP rating (from the front)	IP65
Power Supply
Nominal Input	(AC or DC): 12 – 24 VAC/VDC
Max Power	1.6 W
Display
Number of Digits	4
Digit Height	12mm [0.47"]
Number of Message Characters	4
Message Character Height	6mm [0.236"]
Backlit Colors	Green, Yellow, Red
LCD Display	Positive or Negative
Outputs	Analog Output: 1 – 20 mA

Certification	UL cUL, CEtt

Note: Please read description carefully. Do not base your order on the picture presented.
