Lumens AI-BOX1BUNDLETR40PB AI-Box1 CamConnect Processor Bundle
Brand:
Lumens
Part #:
AI-BOX1BUNDLETR40PB
Condition:
Brand New
Brand NewChoose Package Includes
$5,000.00 /Kit
$5,440.00 You save $440.00 8%
Manufacturer warranty Description

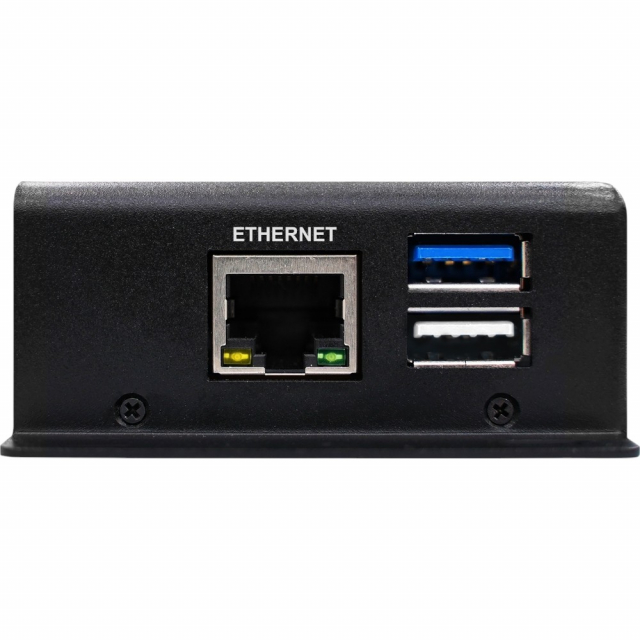

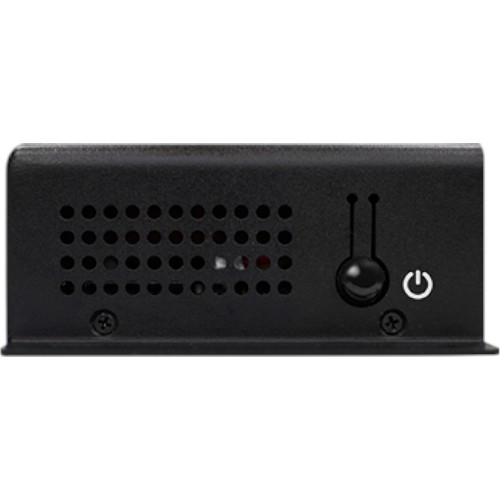

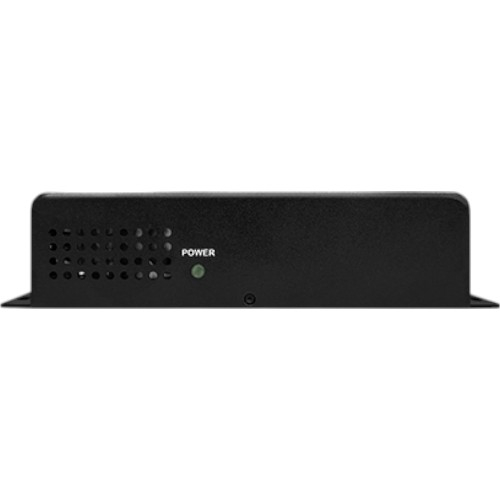

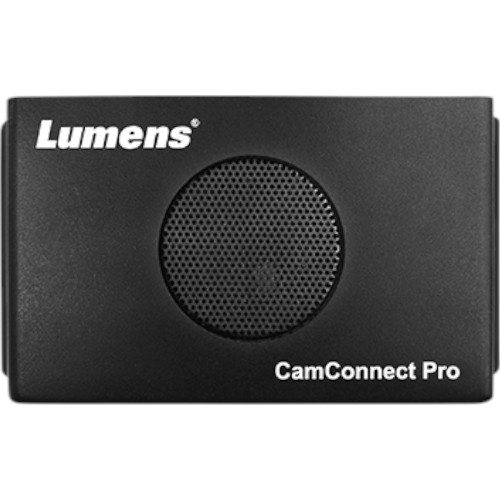

Lumens, AI-BOX1BUNDLETR40PB, AI-Box1 CamConnect Processor Bundle with 2x VC-TR40PB Cameras
AI-BOX1BUNDLETR40PB Includes Only:
- AI-Box1 CamConnect Processor
- 2 x VC-TR40 AI Auto-Tracking Cameras
Features of Processor:
- Speaker Tracking Camera Control: AI-Box1 matches directional audio data with preset camera positions to focus on the active speaker. If the speaker adjusts their position, the camera will intelligently correct the preset to keep the subject in the center of the frame.
- Hybrid Audio-Visual Tracking Algorithm: Turning a PTZ camera into an auto-tracking camera, AI-Box1 uses live data from microphones to track a presenter or teacher as they move across a stage. This makes the unit an ideal partner for lecture capture systems.
- Multiple Camera Auto Switch: AI-Box1 can use up-to 4 cameras to deliver the best shooting angle, dramatically enhancing AV production and the remote meeting experience. The unit also supports multiview mode, for output of two cameras side by side (PBP) or multiple cameras in a 2x2 gallery.
- Microphone Arrays and Digital Signal Processors: AI-Box1 is optimized for a growing line-up of microphones from manufacturers, including Audio-Technica, Nureva, Sennheiser, Shure and Yamaha. For the latest information, please visit website.
Features of Camera:
- AI-Powered Human Detection
- Mount upright or inverted
- HDMI, Ethernet, 3G-SDI and USB simultaneous output
- 1080p 60fps with 20x Optical Zoom
Technical details
Main features
- Interface RS-232 / Ethernet / USB 3.0
- Power USB Type-C Power (5V, 4A)
- Weight 0.8 lbs (350g), 3.3lbs (1.5 kg)
- Digital Zoom 12x
- Audio Output Ethernet / USB 3.0 / HDMI
- Protocol VISCA / ONVIF
- POE Yes (IEEE802.3af)
- Optical Zoom 20X
- Package Includes 2x VC-TR40PB Cameras
- Power Consumption 20W, PoE 11W/DC In 10W
- Operating Temperature 0~40 °C
- Minimum Illumination 1 lux (F1.6, 50IRE, 30fps)
- Operating Humidity 90%
- Shutter Speed 1 / 25 ~ 1 / 10,000 sec
- Preset Positions 256
- Dimension 7.5" x 7.3" x 5.4" / (190 x 185 x 138 mm)
- Panning Angle +170 ~ -170°
- Tilting Angle +90 ~ -30°
- Video Output (HD) Interface HDMI / Ethernet / USB 3.0
- Minimum Object Distance 500mm
- Camera Control Protocol VISCA over IP / UVC
- Audio Input Line In / MIC In
- Panning Speed 0.2 ~ 120° / sec
- Tilting Speed 0.2 ~ 80° / sec
- Audio Compression Format AAC / PCM
- DC In 12V + / - 20%
- Auto Framing Everywhere / Partition
- Exposure Control Auto, manual
- WDR Yes
- Image Flip Yes
- 3D NR Yes
- Auto Tracking Everywhere / Stage / Partition
- Speaker Tracking Yes, with supported directional microphone arrays
- IP Stream PTZ Camera
- IP Compression H.264
- USB Output 1080p30
- USB Compression MJPEG
- IP Protocol HTTP / RTSP / RTMP / RTMPS / SRT
- Ref Audio Input Line in (3.5mm phone jack)
- UVC 1.1
- UAC Yes
- Maximum Supported Cameras 4xIP Or 3xIP + 1xUSB
- IP camera RTSP(H.264 1080p at60/50, 720p at60/50)
- USB Camera UVC (MJPEG 1080p at30/25, 720p at30/25)
- USB Device USB 3.0 Type C, UVC
- USB format MJPEG 1080p at30/25, 720p at30/25
- HDMI Output HDMI 2.0 (GUI menu)
- HDMI Output format 1080p at60/50 Hz
- Ethernet Port Female RJ-45/10/100/1000 Base-T
- LED Power Indicator Yes
- Power button Yes
- Supported Conference Software Teams / ZoomRoom / Zoom / Google Meet
- Supports Multi-array Microphones Yes
- Webpage Configuration Yes
- Camera Auto Switching Yes
- Supports Multi-camera Control Yes, up to 4 cameras
- People Tracking Yes
- Center Stage Yes
- Multiview (Video Source Mixing) Yes, PBP, three-split screen, four-split screen view
- Firmware Update Over the Air (OTA)
- Dimension(WxHxD) 4.96" x 2.76" x1.18" (126 mm x 70mm x 30mm)
- Video S / N Ratio > 50dB
- Gesture Control Yes
- USB Type A (USB Host) Supports USB Camera / Mouse / Keyboard
- AI Director Conversation mode, Customized mode
- Motionless Instant Cut Primary & Secondary Camera
- PTZ Camera Sensor 1 / 2.8" 2.16MP CMOS
- PTZ Camera Video Format 1080p: 60 / 50 / 30 / 25 720p: 60 / 50
- PTZ Camera Aperture F1.6 ~ F2.8
- PTZ Camera Focal Length 4.9mm ~ 94mm
- Panoramic Camera Sensor 1 / 2.8" 2MP CMOS
- Panoramic Camera Video Format 720p30
- Panoramic Camera Horizontal Viewing Angle 111°
- Panoramic Camera Vertical Viewing Angle 62°
- Panoramic Camera Aperture F2.4
- Panoramic Camera Focal Length 3.1mm
- Main 1080p60/Second 720p30/Panoramic Camera 720p30
- PTZ Camera Viewing Angle 58.7° (H) / 33° (V) / 67.3° (D)
