Lilliput Q18-ABBP-CC 12G-SDI Production Monitor 17.3" ABM Case

Configuration: Anton Bauer Mount / Carrying Case + Sunshade
  • Brand Lilliput
  • Part # Q18-ABBP-CC
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Configuration:
Configuration: Anton Bauer Mount / Carrying Case + Sunshade

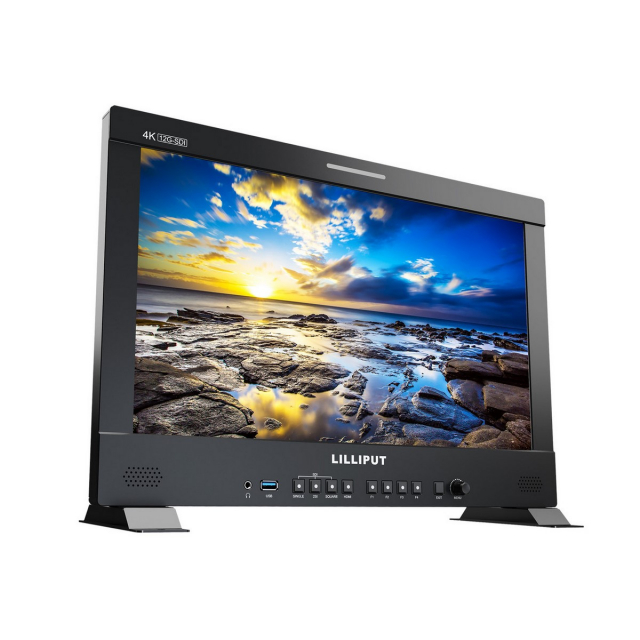

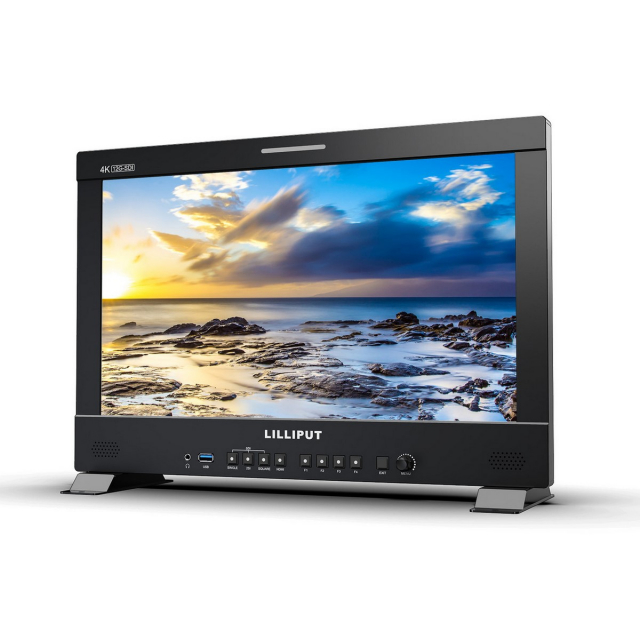

Lilliput, Q18-ABBP-CC, 12G-SDI Broadcast/Production Monitor 17.3" Anton Bauer Mount and Carrying Case + Sunshade

Q18-ABBP-CC Includes Only:

  • 15V DC Adapter
  • VESA Mount Plate
  • Anton Bauer Mount
  • Base Bracket
  • USB Flash Disk
  • Carrying Case + Sunshade

presentation

accurate color calibration

12g-sdi signal

quad split multiview

functions

hdr 3d lut

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer
Manufacturer Warranty

Technical Details

Reviews
Panel17.3"
Physical Resolution3840x2160
Aspect Ratio16:09
Brightness400cd/m2
Contrast1200:1
Viewing Angle170°/ 170°(H/V)
HDRST2084 300/1000/10000/HLG
Supported Log formatsSLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User...
Look up table (LUT) support3D LUT (.cube format)
TechnologyCalibration to Rec.709 with optional calibration unit

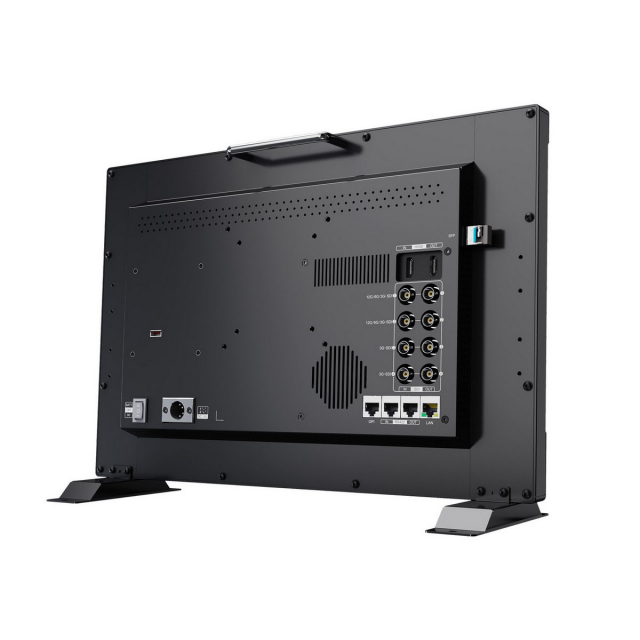

Video Input SDI2x12G, 2x3G (Supported 8K-SDI Formats Quad Link)
Video Input SFP1x12G SFP+(Fiber module for optional)
Video input HDMI1xHDMI 2.0
Video Loop Output SDI2x12G, 2x3G (Supported 8K-SDI Formats Quad Link)
Video Loop OutputHDMI1xHDMI 2.0
Supported Formats SDI2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60...
Supported Formats SFP2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60...
Supported Formats HDMI2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60...
Audio In/Out
(48kHz PCM Audio) SDI		16ch 48kHz 24-bit
Audio In/Out
(48kHz PCM Audio) HDMI		8ch 24-bit
Audio In/Out
(48kHz PCM Audio) Ear Jack		3.5mm
Audio In/Out
(48kHz PCM Audio) Built-in Speakers		2
RS422In/out
GPI1
LAN1
Input VoltageDC 12-24V
Power Consumption34.5W (15V)
Compatible batteriesAnton Bauer Mount
Input voltage (battery)14.8V nominal
Operating Temperature0°C-50°C
Storage Temperature-20°C~60°C
Dimension(LWD)434mm x 294mm x 46mm
Weight3.9kg

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Panel17.3"
Physical Resolution3840x2160
Aspect Ratio16:09
Brightness400cd/m2
Contrast1200:1
Viewing Angle170°/ 170°(H/V)
HDRST2084 300/1000/10000/HLG
Supported Log formatsSLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User...
Look up table (LUT) support3D LUT (.cube format)
TechnologyCalibration to Rec.709 with optional calibration unit
Video Input SDI2x12G, 2x3G (Supported 8K-SDI Formats Quad Link)
Video Input SFP1x12G SFP+(Fiber module for optional)
Video input HDMI1xHDMI 2.0
Video Loop Output SDI2x12G, 2x3G (Supported 8K-SDI Formats Quad Link)
Video Loop OutputHDMI1xHDMI 2.0
Supported Formats SDI2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60...
Supported Formats SFP2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60...
Supported Formats HDMI2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60...
Audio In/Out
(48kHz PCM Audio) SDI		16ch 48kHz 24-bit
Audio In/Out
(48kHz PCM Audio) HDMI		8ch 24-bit
Audio In/Out
(48kHz PCM Audio) Ear Jack		3.5mm
Audio In/Out
(48kHz PCM Audio) Built-in Speakers		2
RS422In/out
GPI1
LAN1
Input VoltageDC 12-24V
Power Consumption34.5W (15V)
Compatible batteriesAnton Bauer Mount
Input voltage (battery)14.8V nominal
Operating Temperature0°C-50°C
Storage Temperature-20°C~60°C
Dimension(LWD)434mm x 294mm x 46mm
Weight3.9kg

Note

Note: Please read description carefully. Do not base your order on the picture presented.
