| Laser Type | - 10W 450nm Blue Diode Laser
- 2W 1064nm Infrared Laser
|
| Working Area | - 160mm × 120mm (Standard)
- 160mm × 300mm (with Slide Extension Accessory)
|
| Engraving Speed | 4000mm/s |
| Preview Speed | 16000mm/s |
| Movement Accuracy | 0.0019mm |
| Resolution | 1K / 2K / 4K / 8K |
| Applicable Materials | - 10W 450nm Blue Diode Laser: Lacquered metal, Anodized aluminum, 304 stainless steel, Bamboo, Wood, Leather, Food, Paper, Fabric, Photosensitive printing, Plastic, Acrylic, Tinted glass, Color glaze ceramics, etc.
- 2W 1064nm Infrared Laser: Metal, Plastic, Leather, and any material with paint coating
|

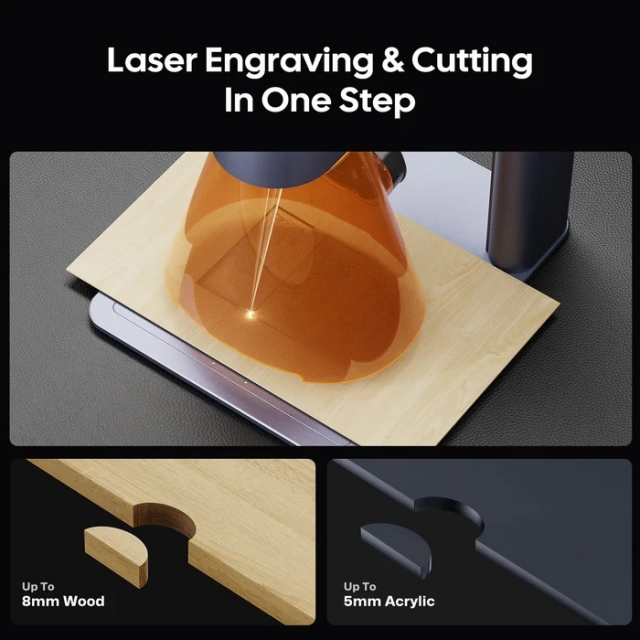

| Cutting Depth | - 8mm Balsa Wood
- 5mm Dark Opaque Acrylic
|
| Preview Mode | Rectangle Preview / Outline Preview / Center Point Preview |
| Software | LaserPecker Design Space & LightBurn |
| File Formats | - Mobile App: JPG, PNG, G-Code, SVG
- PC Software: G-Code, JPG, PNG, SVG, DXF (Vector Formats)
|
| Connection | - Mobile: Wireless Bluetooth 5.0
- PC: USB Connection / Wireless Bluetooth 5.0 (Dongle Required)
|
| Operating System | - Mobile: iOS 9.0+ & Android 7.0+
- PC: macOS 10+ & Windows 10+
|
| System Language | English, German, Spanish, French, Japanese, Korean, Simplified Chinese, Traditional Chinese |
| Safety Certifications | CE, ROHS, FCC, FDA, CDRH, NCC, KC, UKCA, TELEC |
| Input Power | - DC (24V, 5A)
- AC (100-240V, 50-60Hz)
|
| Dimensions | - Laser Head: 241 × 82.1 × 139.7mm
- Stand: 260.5 × 218 × 283.5mm
- Cone-shaped Protective Shield: 176 × 145 × 155.7mm
|
