KT&C
Analog Dome Camera, 1/3" SONY EXview HAD CCD II

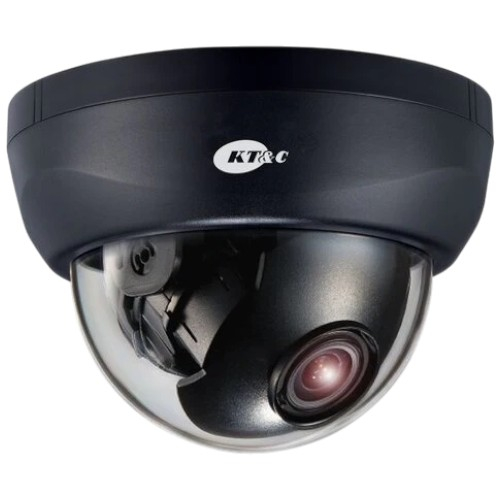

KT&C KPC-DNS102NUV Analog Dome Camera, 1/3" SONY EXview HAD CCD II

Brand: KT&C
Part #:
KPC-DNS102NUV
Condition:
Brand New
$79.53 /Each
Handling Purchases under $100.00 are subject to $15.00 handling fee.
Typically In Stock
Check availability
$79.53 /Each
Handling Purchases under $100.00 are subject to $15.00 handling fee.
Manufacturer warranty

Description

$79.53 /Each
Typically In Stock
Check availability

Technical details

Main features
  • Weight .76 lbs. / 343 grams
  • Dimensions 5.31" (135mm) diameter, 3.82" (97mm) high
  • Certifications Ce / FCC RoHS
  • Lens Type 2 Megapixel Aspheric Varifocal DC Iris 2.8~12mm F=1.6
  • Power Consumption 12VDC:160mA max. / 24VAC:1.8W max.
  • Operating Temperature 5°F~140°F ; -15°C~60°C
  • Horizontal Resolution More than 750 TVL
  • Electronic Shutter Auto; or 1/60, FLK, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/5000, 1/10000, 1/100000
  • Video Output BNC 1.0V p-p 75Ω; video test point inside dome, cable supplied
  • White Balance ATW/AWB/AWC->SeT/Anti-Color Roll/Manual
  • Motion Detection Off/On for 4 selectable zones (On-screen indication)
  • Power Source 12VDC/24VAC Automatic
  • Sensitivity .01 lux native from sensor - no ghosting With lens: .1 lux
  • Environmental Indoor; up to 80%RH (non-condensing)
  • Video Format NTSC
  • 2D-DNR On/Off (level adjustable)
  • Back Light Compensation OFF/BLC/HLC Selectable
  • Privacy Mask Off/On for 8 selectable zones
  • Gamma Correction 0.45
  • S/N Ratio Over 50dB (AGC off)
  • Imaging Device 1/3" 960H High Sensitivity CCD
  • Picture Elements NTSC: 1020(H)x508(V)
  • Mechanical Three-axis, twist-open dome; choice of black body (no suffix) and white body (W suffix)
  • Day & Night Digital D/N control; Choose Auto, Color or B/W
  • OSD Languages english, Spanish, Portuguese, German, Russian, Japanese, Chinese, French
  • effective Picture elements NTSC: 976(H) x 494(V)
  • Sync. Mode Internal (plus Anti Color Roll White Balance option above)
  • OSD Menu Multiple functions using 3-axis joystick
  • Auto Gain Control Off/Low/Middle/High
  • Mirror OFF/ON
  • Other OSD Functions Camera Title with position and Font Color; Image Contrast/Sharpness; CRT/LCD display optimization; Negative Image; DPC (Dead Pixel Compensation)
  • Lens Positioning 3-axis flexible positioning for wall or ceiling mounting
  • Digital Wide Dynamic Range On/Off (level adjustable)
  • Lens Shading Correction Off/On with adjustable level and center
