Choose Effective Pixels
Discontinued
Manufacturer warranty Description
Features:
- 1/2.8" Progressive Scan CMOS
- 1080p 30 (25) fps
- H.264 Main/Base Profiles
- Fixed lens 3.6mm
- electronic Day & Night
- 3D DNR, DSS, BLC, WDR
- ethernet 10/100 Base-T LAN
- DC12V
- Fast boot up (within 2 seconds) based on RTOS
For more information, please see
Data Sheet
Discontinued
Technical details
Main features
- Weight Approx.5.65g
- Image Sensor 1/2.8" Progressive Scan SONY STARVIS CMOS
- Lens Fixed 3.6mm Lens
- Ethernet 10/100 Base-T LAN
- Protocol HTTP, HTTPS, UPnP, DNS, DDNS, RTP/RTSP, TCP/IP, UDP, DHCP, RARP, NTP
- Effective Pixels 1945 (H) x 1097 (V)
- Electronic Shutter Speed Slow Shuttert (OFF~x32), 1/25 (30)~1/30,000
- Power Consumption Max.190mA (12VDC)/Max.3.0W (Poe)
- Supply Voltage 12VDC (±10%)
- Video Resolution 1920x1080, 1280x720, 800x600, 704x480, 704x400, 640x480, 640x360, 320x240
- Operating Temperature 10°C~+50°C
- Storage Temperature 20°C~+60°C
- Web Browser Internet explorer, edge, Safari, Firefox, Chrome
- Angle of View 112.3° (D)x93.7° (H)x49.3° (V)
- Dynamic Range Double Shutter WDR, 116dB (estimated)
- White Balance Auto, 3000K, 5000K, 8000K
- Motion Detection 60x34 Motion Block, upto 4 Zones

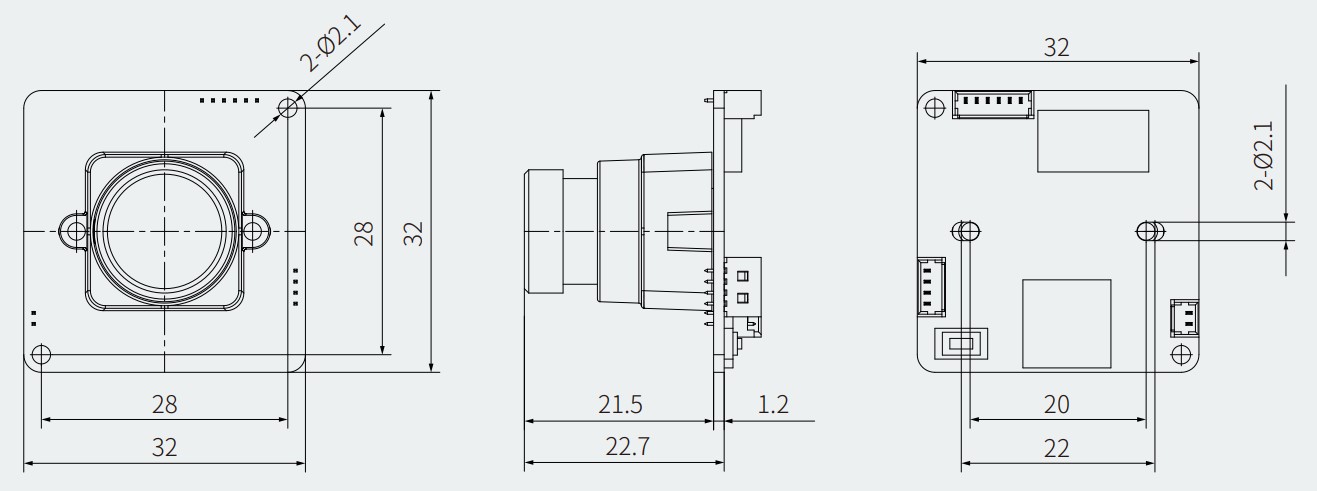

- Dimension (mm) 32x32mm
- IP IPv4
- Noise Reduction 2D, 3D DNR
- S/N Ratio ≤50dB
- Max. Frame Rate 1th: 1080p 30 (25) fps (H.264) 2nd: 640x360 30 (25) fps (H.264) 3rd: 1080p 30 (25) fps (MJPeG)
- Day&Night Auto/Color/B&W (electronic D&N)
- Video Compression Format H.264 Baseline, Main Profile, MJPeG
- Scanning Progressive scan
- Min.Illumination 0.05Lux (F2.5, DSS Off) / 0.01Lux (DSS On)
- Vidoe Output Network
- Auto Gain Control (AGC) OFF~69dB
- Privacy Masking Zone 16 Zones
- Alarm Trigger Motion
- Alarm events Network
- Streaming Capability Multiple Streaming (Up to 3 Profiles)
- Streaming Method Unicast
- Bitrate Control H.264 : CBR, VBR, CVBR
- SW Integration API Onvif
