Options and Related Products

Material:: Material: 304 Stainless Steel
Size (in):: Size (in): 1-1/2

Ken Forging, EN-14-HD-SS, 1-1/2" Carbon Steel Eye Nut Style B 1-1/2"-6 Unc- 2b, 304 Stainless Passivated and Electropolished, ASTM 194 Grade 8

Features:

Drop Forged Stainless Steel
Passivated & Electropolished
ASTM A194-8
Tapped UNC-2B

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

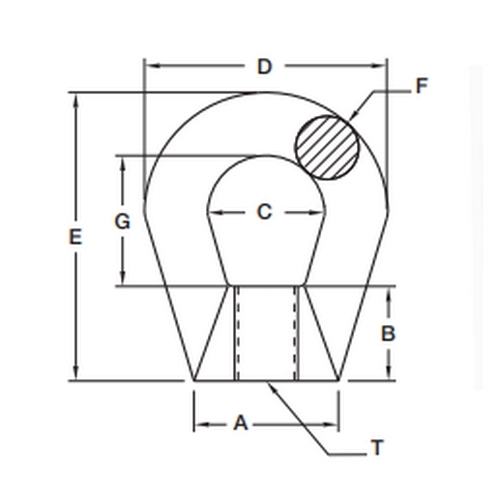

Technical Details

(T) Dia. and Thread UNC-2B	1-1/2"-6
(A) Bell	3-1/8"
(B) Thread Length	2-7/32
(C) Eye I.D.	2-1/2"
(D) Eye O.D.	5-1/4"
(E) Overall Length	6-5/8"
(F) Bail Dia. Thickness	1-3/8"
(G) I.D. Length	3-1/32"
Rated Capacity Lbs.	35,600
Weight, Lbs.	7.43

Product Details

(T) Dia. and Thread UNC-2B	1-1/2"-6
(A) Bell	3-1/8"
(B) Thread Length	2-7/32
(C) Eye I.D.	2-1/2"
(D) Eye O.D.	5-1/4"
(E) Overall Length	6-5/8"
(F) Bail Dia. Thickness	1-3/8"
(G) I.D. Length	3-1/32"
Rated Capacity Lbs.	35,600
Weight, Lbs.	7.43

Note: Please read description carefully. Do not base your order on the picture presented.
